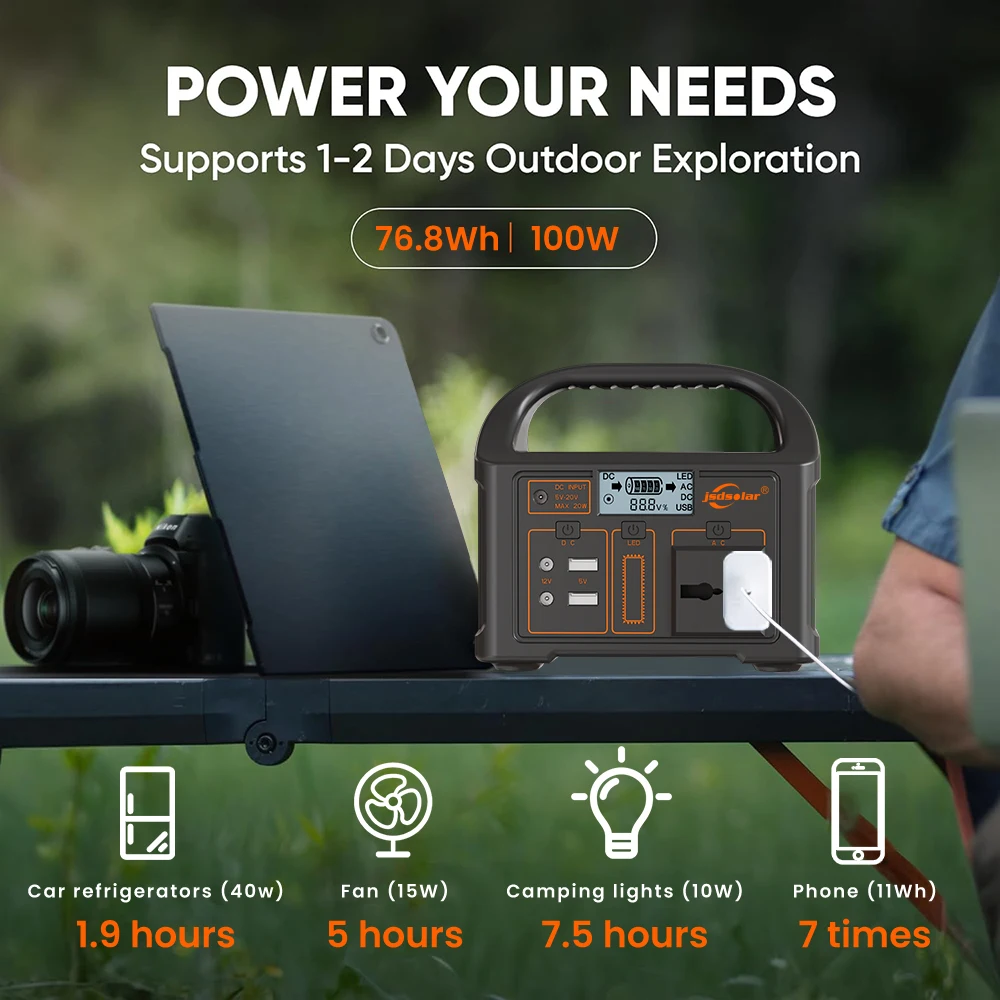

Product Features：

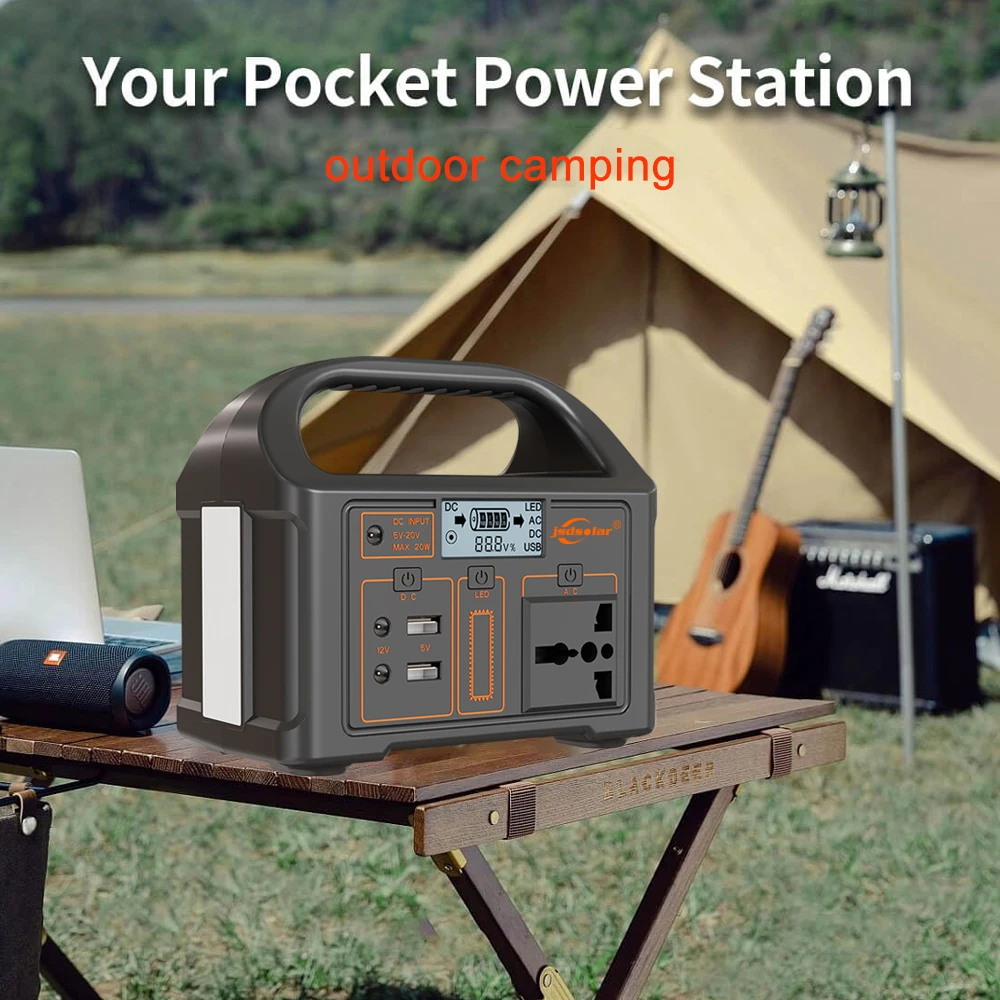

1. Large Capacity & Versatile Use: With a substantial 24000mAh capacity, the portable solar power station caters to a wide array of situations, from outdoor camping and self-driving tours to fulfilling household emergency needs during power outages. Stay powered up anywhere, anytime.
2. High Quality Lithium Iron Phosphate Battery: The power generator is equipped with a Lithium Iron Phosphate battery that guarantees over 2000+ charge cycles. This high-quality power battery pack ensures a longer lifespan and safer use.
3. Compact and Powerful: Improved over other products on the market, the outdoor camping power bank boasts a smaller volume and lighter weight while maintaining powerful functionality. It can power a variety of electronic devices, making it a convenient and reliable choice for outdoor use.

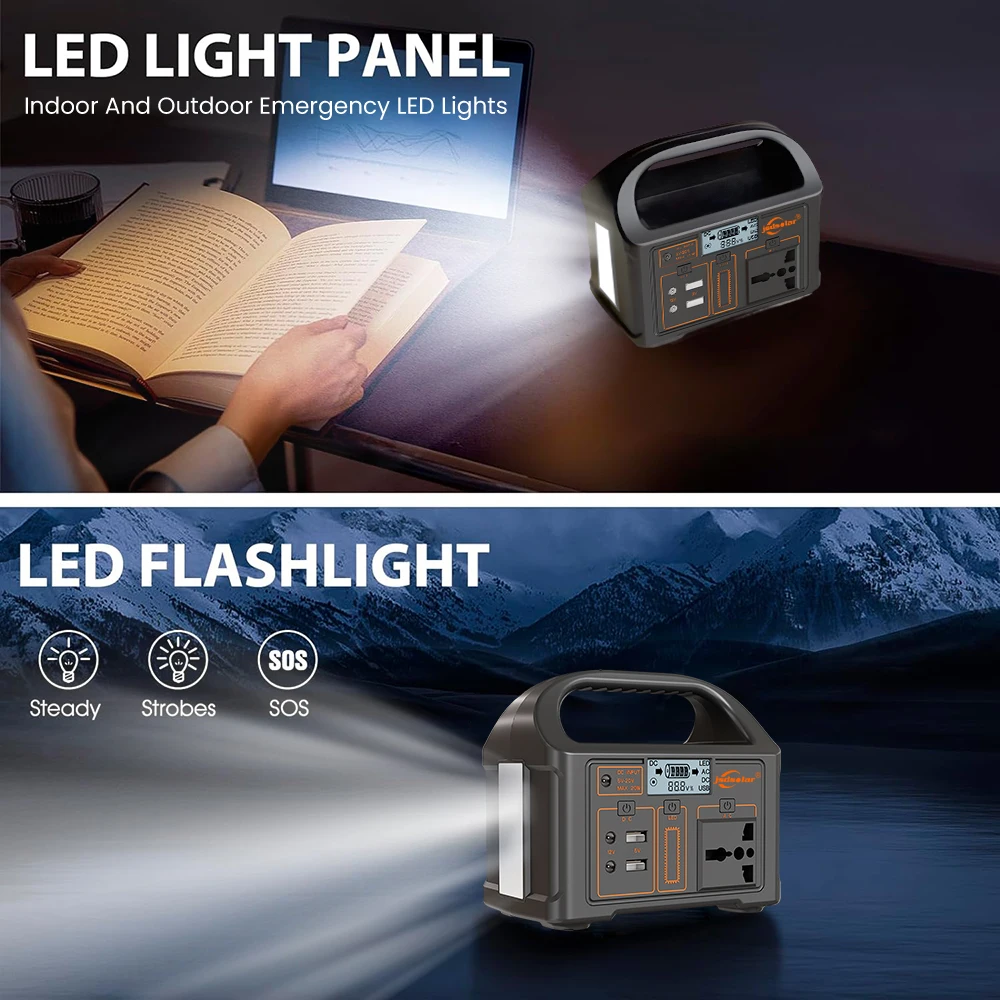

4. LED Lighting & Diverse Output: The outdoor power supply features LED lighting with four modes: high brightness, half brightness, flashing, and off. It provides a DC5V 2.4A dual USB output and a DC12V3A dual DC5521 output, catering to electronic and outdoor equipment, offering significant convenience.
5. Safe and Efficient: The portable outdoor generator prides itself on safety and efficiency. It provides fast charging and includes multiple safety protections, ensuring reliability and durability for outdoor use.

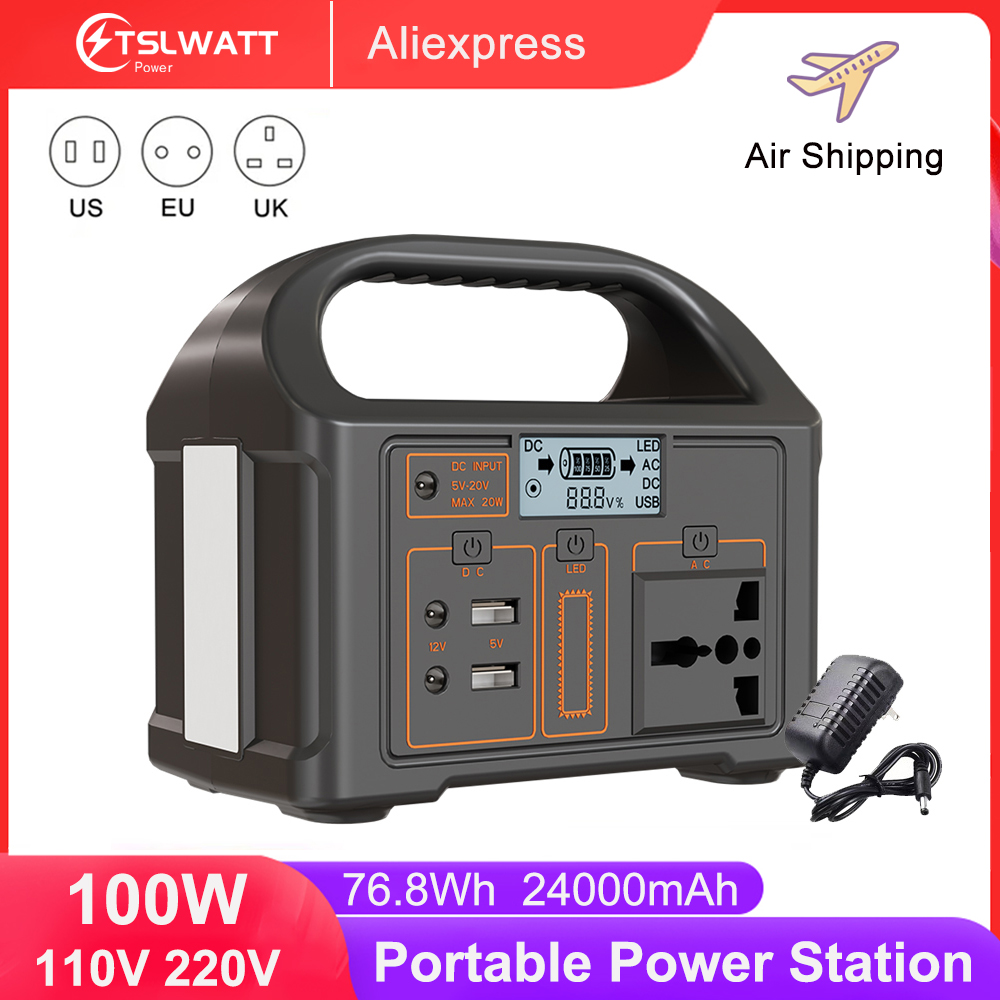

Specification:
Rated power: 100W
Output waveform: correction wave
AC output voltage: 220V ±15%
AC output frequency: 50Hz/60Hz ±2Hz
Conversion efficiency: maximum value>90%

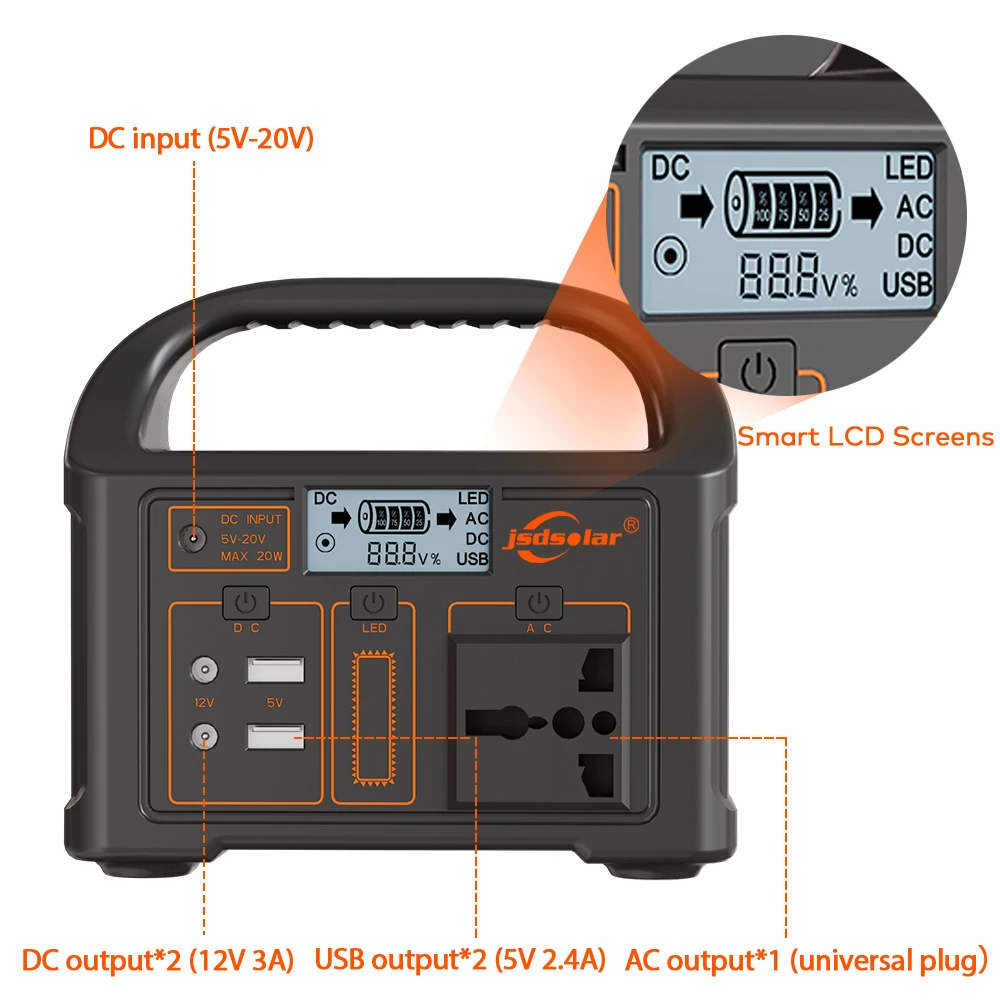

Charging interface: external charger interface and solar panel charging interface DC5521*1 (built-in solar intelligent controller)
AC output socket: universal seat
DC output voltage: DC5V 2.4A, 2*USB; DC12V3A, 2*DC5521
LED light: The LED light is high on, the LED light is half on, the LED light flashes, and the LED light is turned off in 4 states

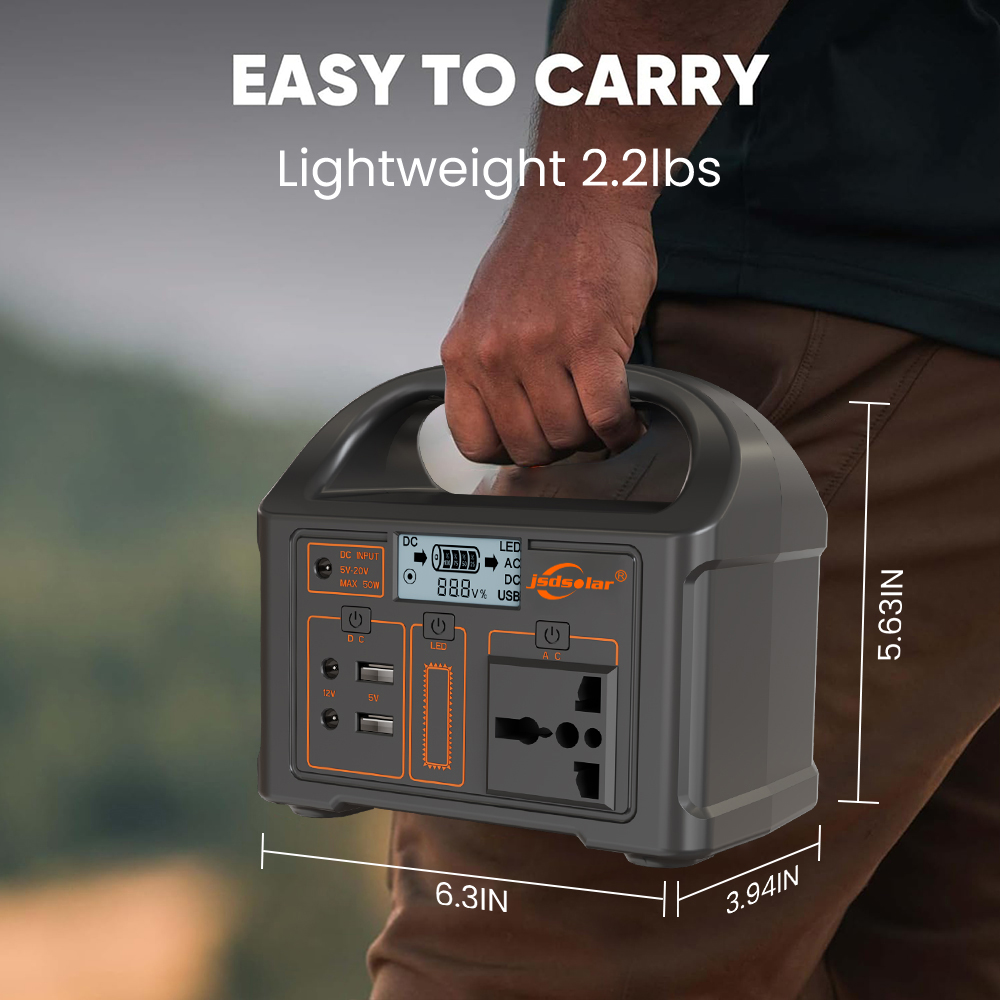

Product Size W*D*H(mm) :160*100*143
Net weight: 1kg
LiFePO4 battery:
2000+ cycles : approximately equal to 10 years of full capacity use
Safety: Short circuit is not easy to cause fire and explosion
Durability: Long battery life
High temperature resistance: the peak electric heating reaches 350-500°C
Environmental protection: generally considered to be free of heavy metals and less polluted than rare metals
3 charging methods: indoor and outdoor flexible energy replenishment, MAINS charging, car charging, solar charging
|
Rated Power |
100W |
|
Output Waveform |
Modified Sine Wave |
|
AC Output Voltage |
220V/110V±15% |
|
AC Output Frequency |
50Hz/60Hz ±2Hz |
|
Conversion Efficiency |
Maximum Value>90% |
|
Charging Interface |
External Charger Port and Solar Panel Charging Port DC5521*1 (Built in solar intelligent controller) |
|
AC Output Socket |
Universal Socket |
|
DC Output Voltage |
DC5V 2.4A, 2*USB; DC12V3A, 2*DC5521 |
|
LED Light States |
LED bright, half-bright, flashing, LED off 4 states |
|
Battery Type |
LiFePO4 |
|
Battery Capacity |
12.8V 76.8wH |
|
Charging Current |
Maximum Value 2A |
|
AC Charger Specifications |
5V 2A universal mobile phone charger (prepared by user) |
|
Charging Time |
After full discharge, the battery capacity reaches 80% after 10 hours of charging |
|
LCD |
Battery Capacity, Battery Voltage, State of Charge, State of Discharge |
|
Heat Dissipation |
Automatic cooling |
|
Protection Functions |
Low Voltage, Over Voltage, Over Load, Over Temperature, Short Circuit |
|
Operating Ambient Temperature |
-10～40℃ |
|
Operating Environment Humidity |
10～85% |
|
Storage Ambient Temperature |
—20～70℃ Without Condensation |
|
Storage Environment Humidity |
5～90% |
|
Structural Characteristics |
ABS Fireproof Enclosure |
|
Net Weight(kg) |
≈1kg |
|
Product Size W*D*H(mm) |
160*100*143 |
Package List：
100W Power Station*1
Charger (EU/US/UK plug optional)*1
Product Manual*1
