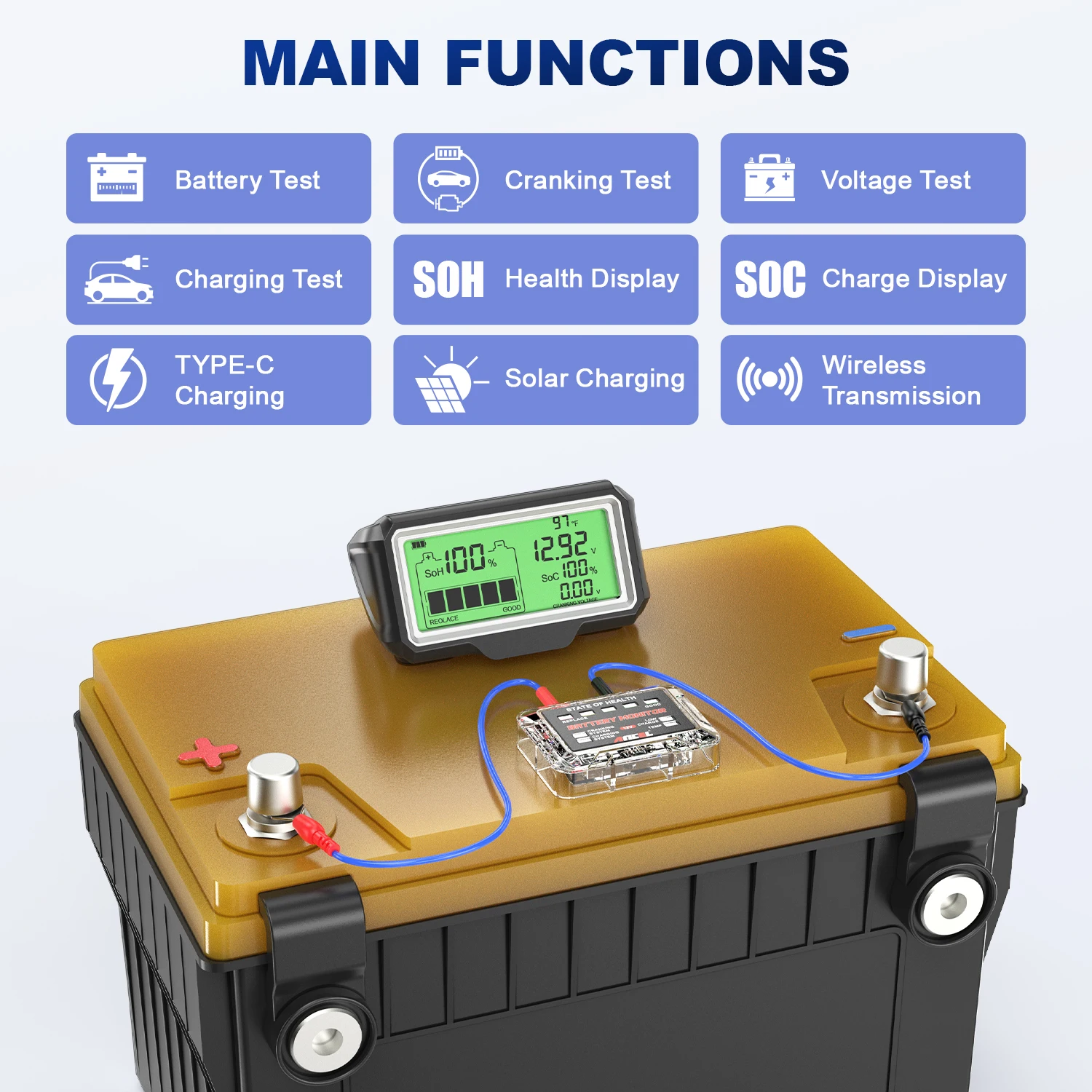

Features

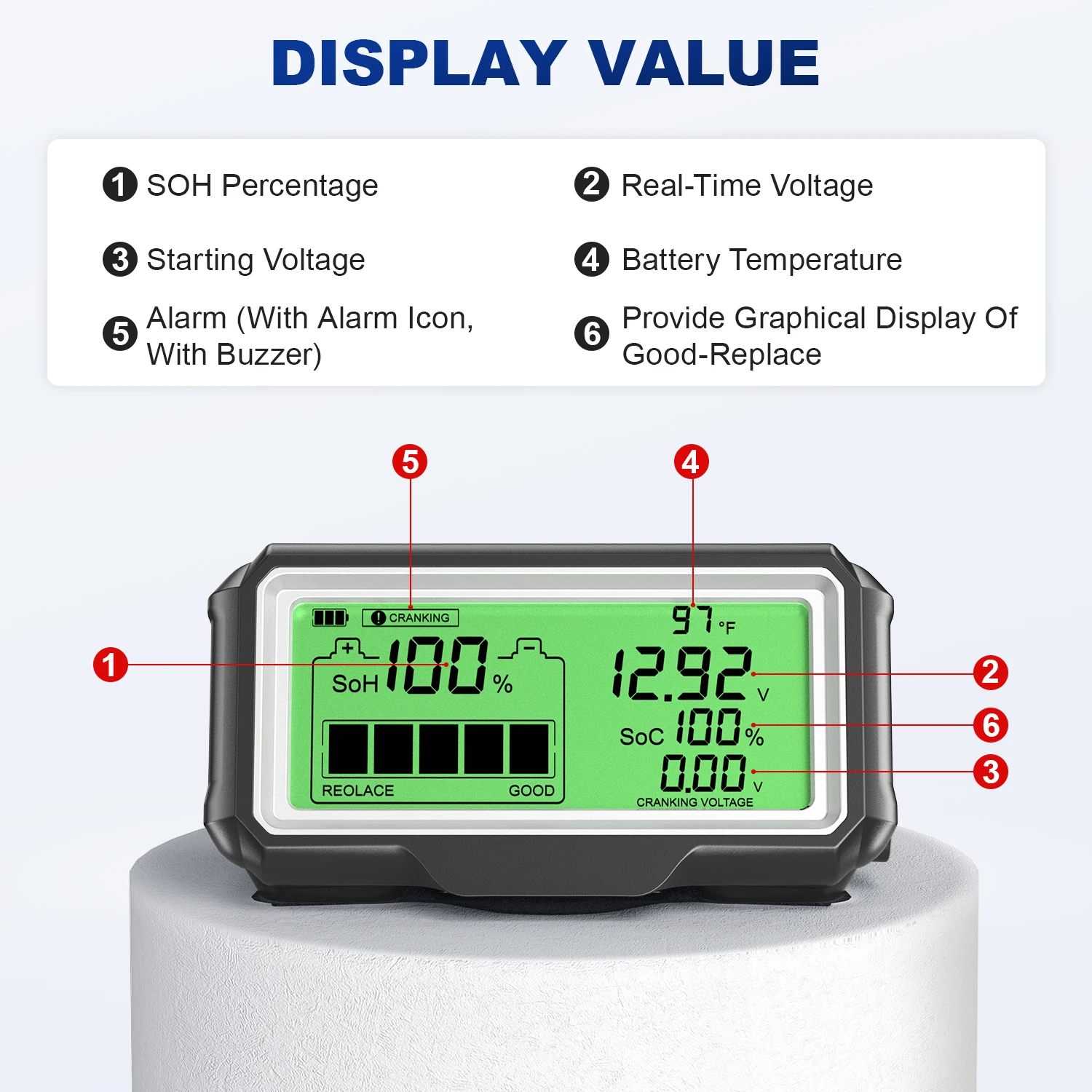

1. Real-time display of battery health value, temperature, charge and voltage
2. Battery start system and charging system monitoring
3. Data abnormality alarm to remind you of battery status in time
4. Powered by solar panels, with Type-C charging interface, very low power consumption, one charge can be used for a week
5. 433MHz accurate transmission, real-time monitoring of battery status
6. Intelligent vibration induction, intelligent screen off and bright screen, automatic switch on and off, low power consumption
7. Patented algorithm, the longer the time, the more accurate.

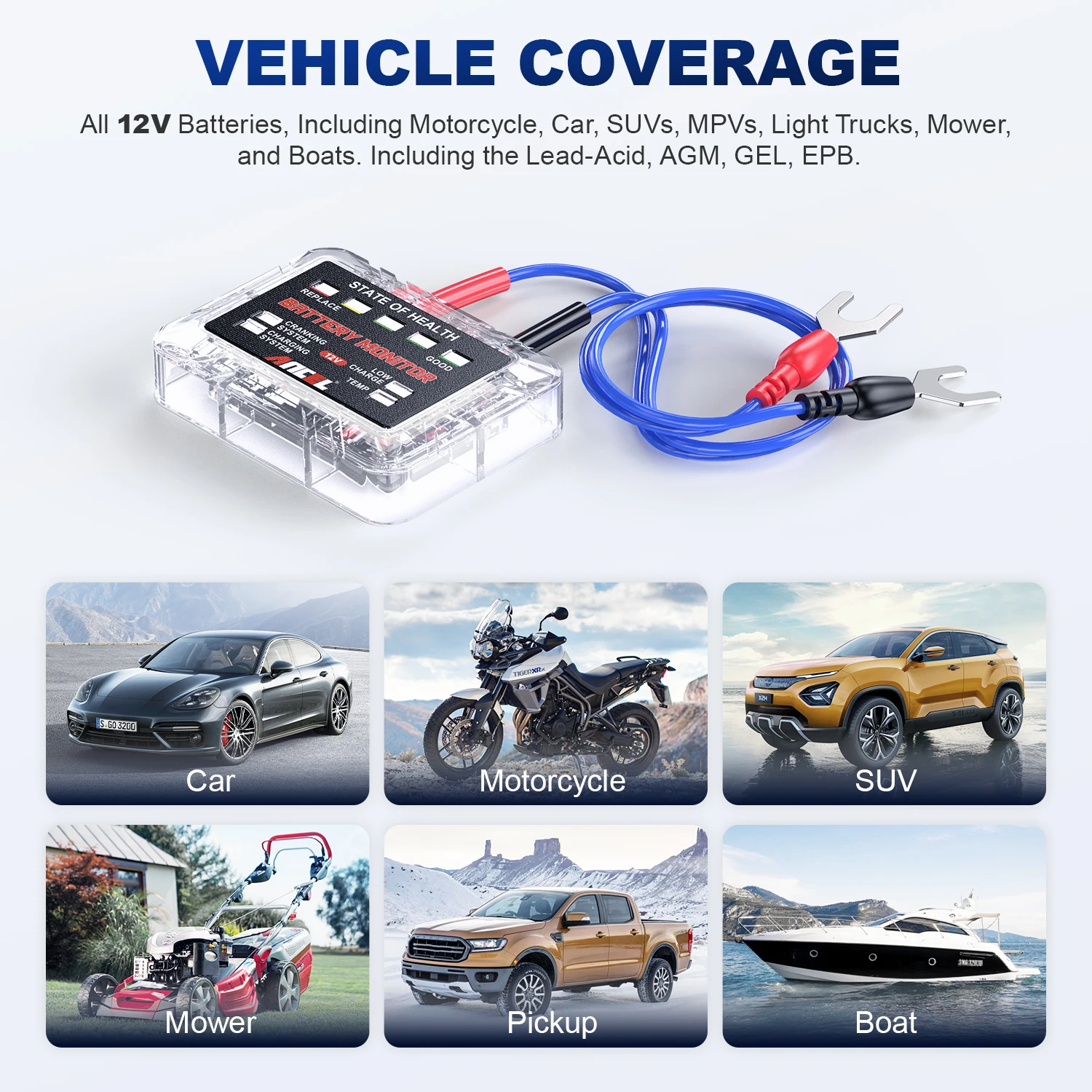

8. Applicable to all 12V starter batteries, versatile, can be used in cars, trucks, yachts, motorcycles
Advantages：
1. Excellent performance, power saving, easy installation
2. No need to install the display, put it directly in front of the window
3. Automatic power on/off, no need for intervention. The automatic mechanism is a vibration sensor. Vibrate on for 5 minutes and off after 5 minutes of silence.
4. Low power consumption at the transmitter side, which does not drain the battery. Built-in solar panel on the display for power saving

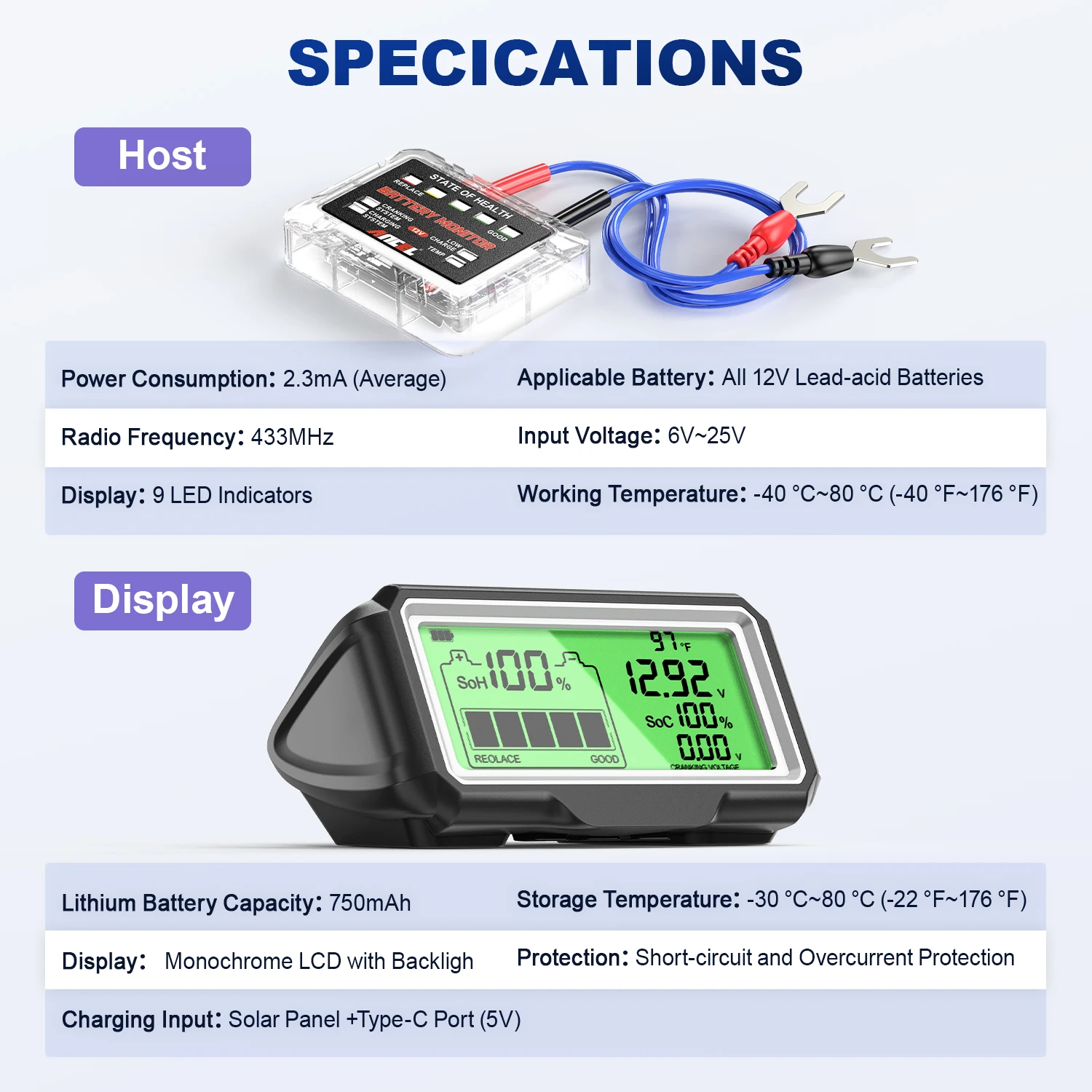

Specifications: Host
Material: Plastic, ABS
Working Voltage：6-25V
Working Temperature:-40°C-80°C
Average Operating current: 2.3mA
Data Transmission Frequency: 433MHz Wireless transmission
Display:9 LEDS
Protection: Built-in fuse and reverse polarity protection circuit
Specifications: Display
Built-in lithium battery capacity: 750mAh
Charging input: solar panel, TypeC
Display: Monochrome LCD screen with backlight
Protection:Built-in fuse
Operating temperature: -20°-70°C
Storage temperature: -30°-80°C

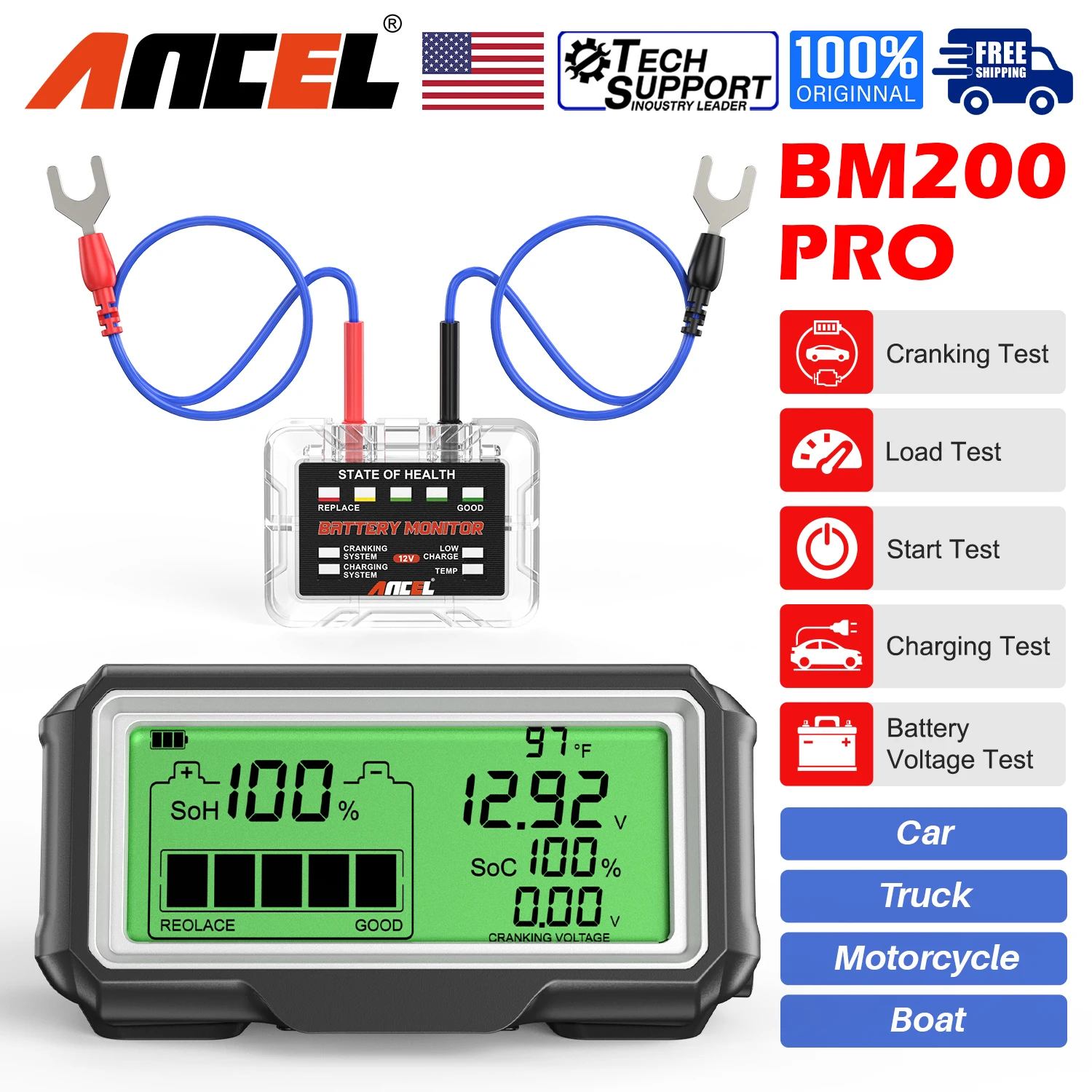

All 12V Batteries Car Tester
Cranking Test
Load Test
Start Test
Charging Test
Battery Voltage Test
Built-in Shock Sensor
Automatic Switch, No Prior Notice Required

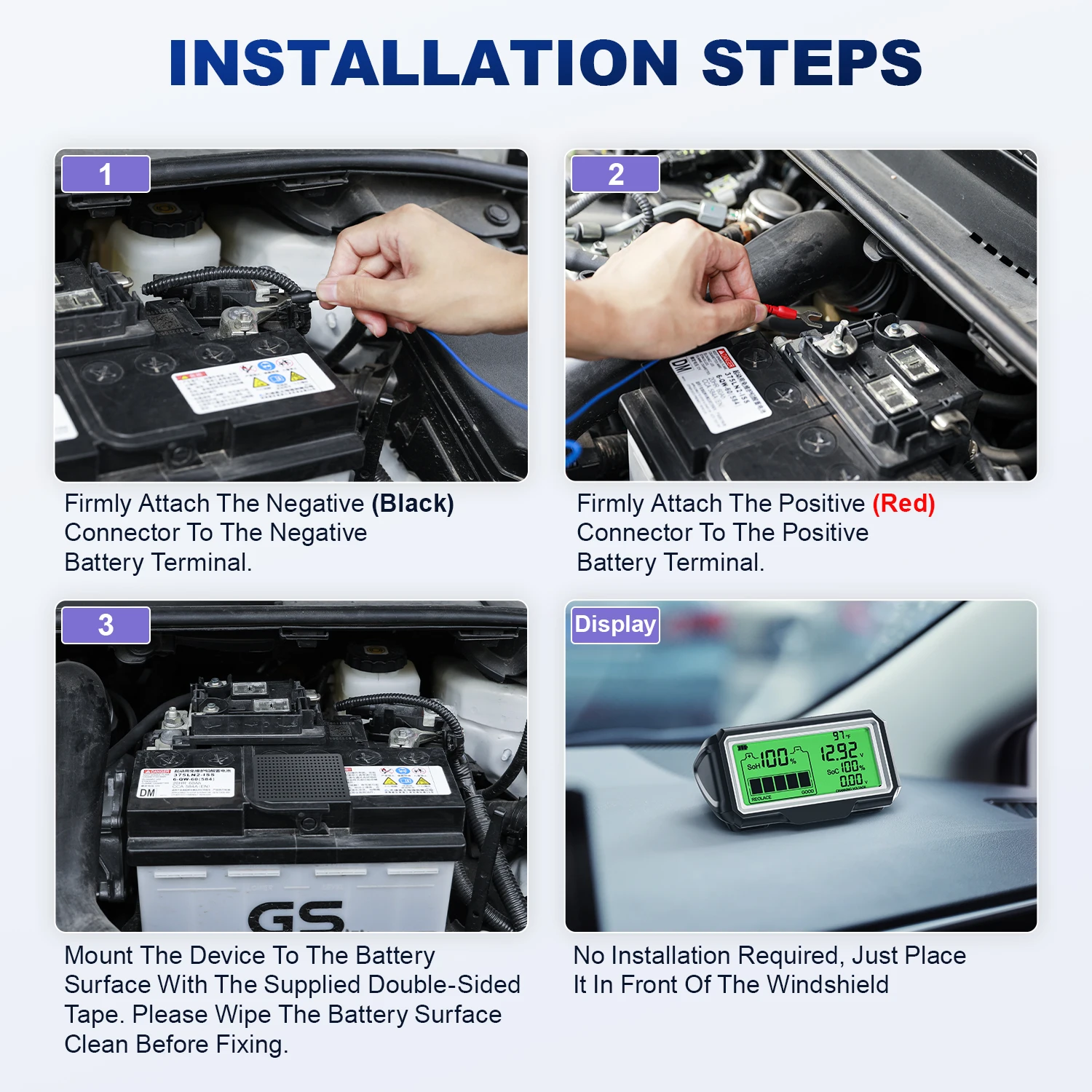

Installation Steps:
Step 1: Firmly Attach The Negative (Black), Connector To The Negative Battery Terminal.
Step 2: Firmly Attach The Positive (Red), Connector To The Positive Battery Terminal.
Step 3:Mount The Device To The Battery Surface With The Supplied Double-Sided Tape. Please Wipe The Battery Surface Clean Before Fixing.
Step 4: No installation Required， Just Place It In Front Of The Windshield
IPX67 Waterproof and Dustroof Deep Waterproof
Two Modes:
Daylight Mode
Night Mode
Charging Mode
