ANCEL BA101 12V Automotive Car Battery Tester Battery Load Tester for Car Motorcycle 100-2000CCA Digital Analyzer Tester Tools
ANCEL BA101 Battery Tester adopts currently the world’s most advanced conductance testing technology to easily， quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery， healthy state of the battery itself， and common fault of the vehicle starting system and charging system， which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.
Top Reason to Chose ANCEL BA101 Car Battery Tester
1. Accurate tester result in miliseconds (tolerance ±15)
2. BA101 can test CCA 100-2000, 30-220Ah, which is the highest CCA in the market
3. Test batterues on and off the vehicle
4. Battery life analysis, Life in percentage (%),Internal resistance value (m),Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
5. Testing standards include currently the world’s majority of battery standards，CCA， BCI， CA， MCA， JIS， DIN， IEC，EN，SAE，GB.
6. Easily read LCD screen display
7. Quick test – input battery volume (AH), then it can show the battery status.

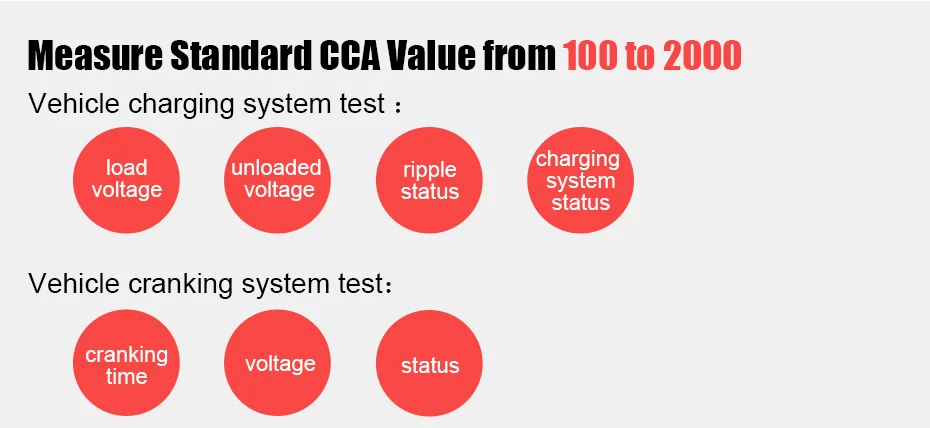

8. vehicle cranking system test – cranking time, voltage and status.
9. vehicle charging system test – load voltage, unloaded voltage, ripple status and charging system status.
10. Store the testing result, print function
Wide Range of Application of ANCEL BA101 Battery Tester
ANCEL BA101 can test 12V batteries, suitable for a variety of common models and equipment.
ANCEL BA101 supports test all automotive cranking lead acid battery， including ordinary lead acid battery， AGM flat plate battery， AGM spiral battery，and Gel battery， EFB battery， etc.
Notice:
the device don’t need charge.The USB port is only for printed data, when you connect the USB port, the device screen is in white color, it’s normal, not quality problem.
Ancel BA101 has Two Multi-Language Version

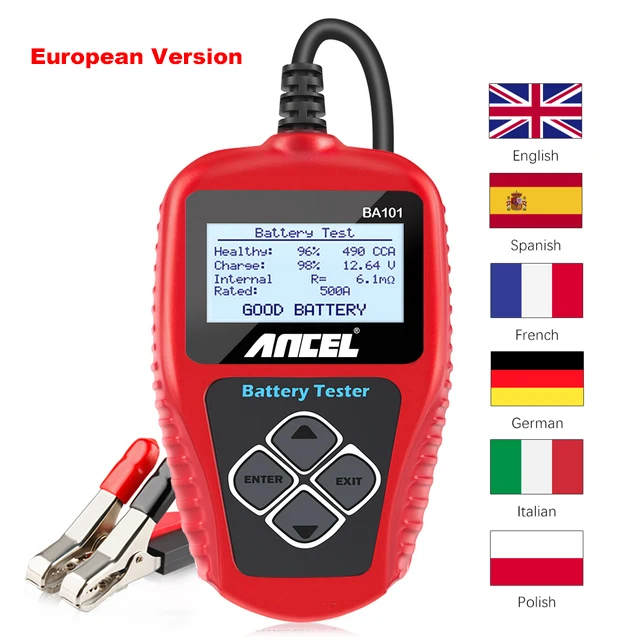

1.European Version: English, Spanish, French, German, Italian, Polish
2.Asian Version: English, Portuguese, Filipino, Spanish, German, Malay

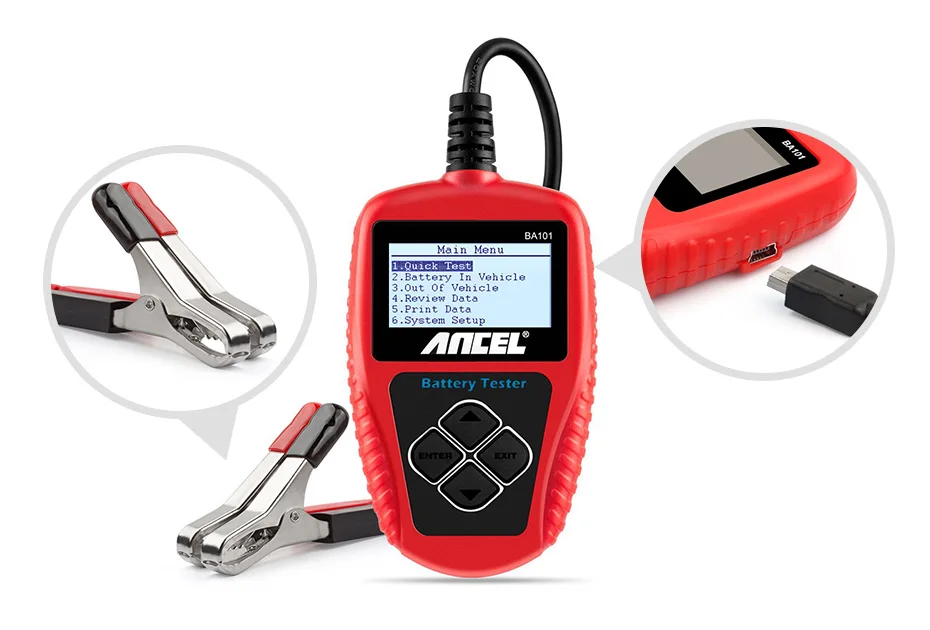

ANCEL BA101 Functions:

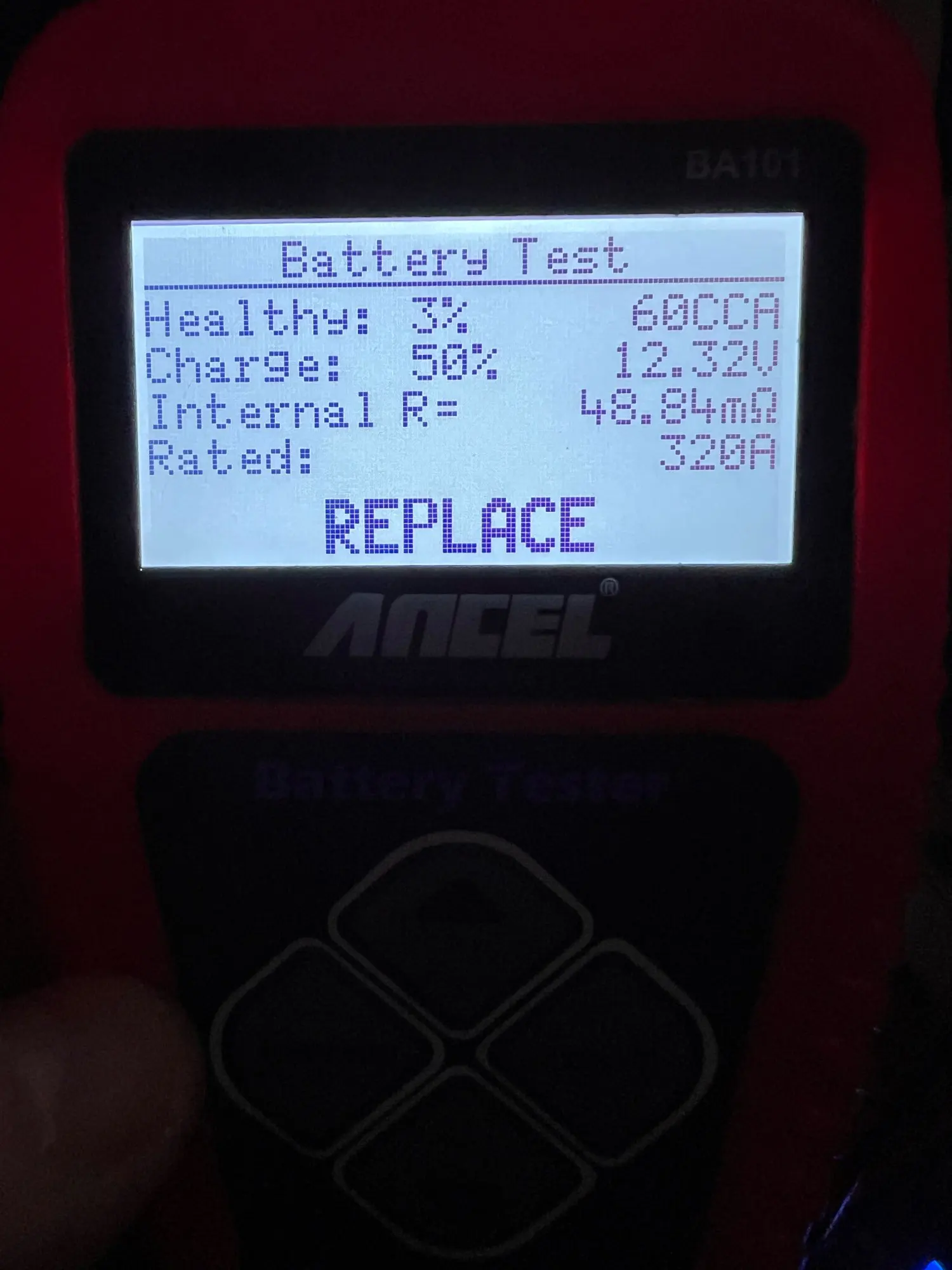

1. Test Results: Good or Replace
2. Internal resistance value (m)
3. Life in percentage (%)
4. Cranking system
5. Charging system
6. Operating Parameters:
7. System voltage: 12 Volts
8. Input voltage range: 9V~15V
9. Power requirements: No internal batteries required
10.Capacity: Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating
ANCEL BA101 Function:

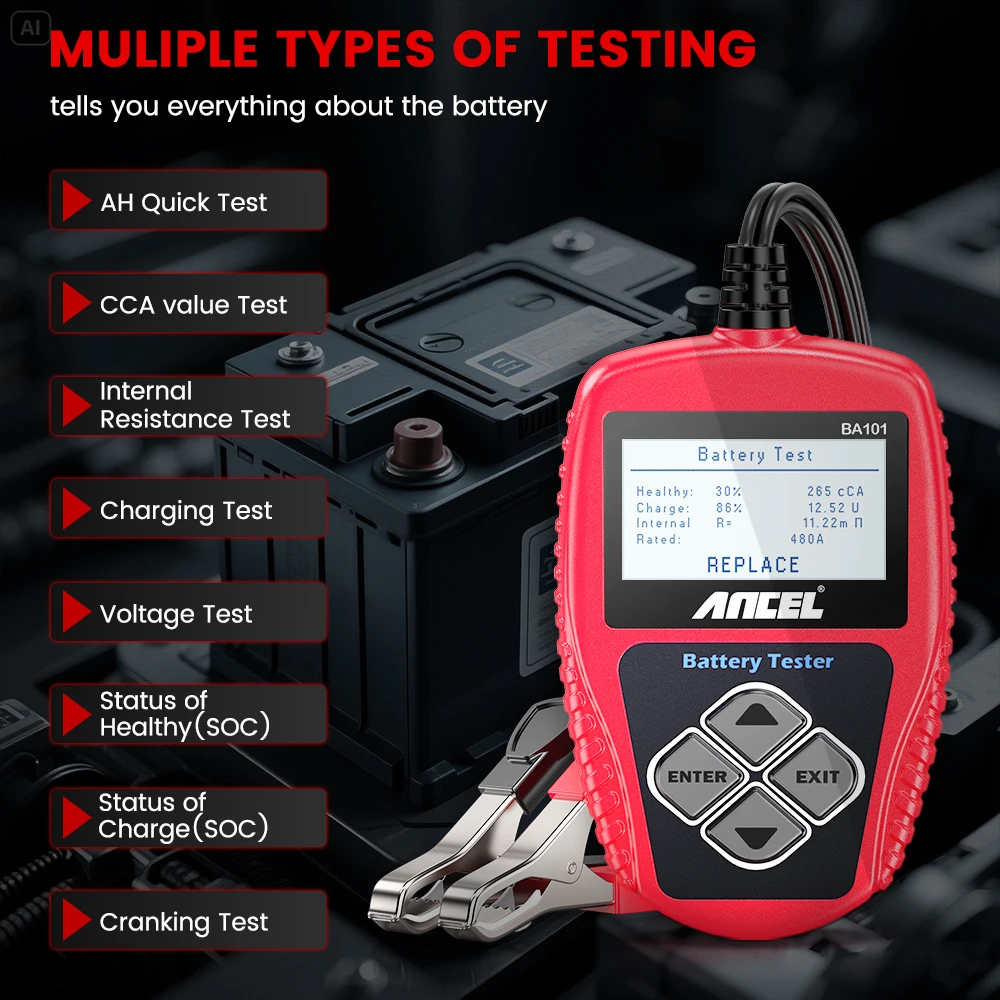

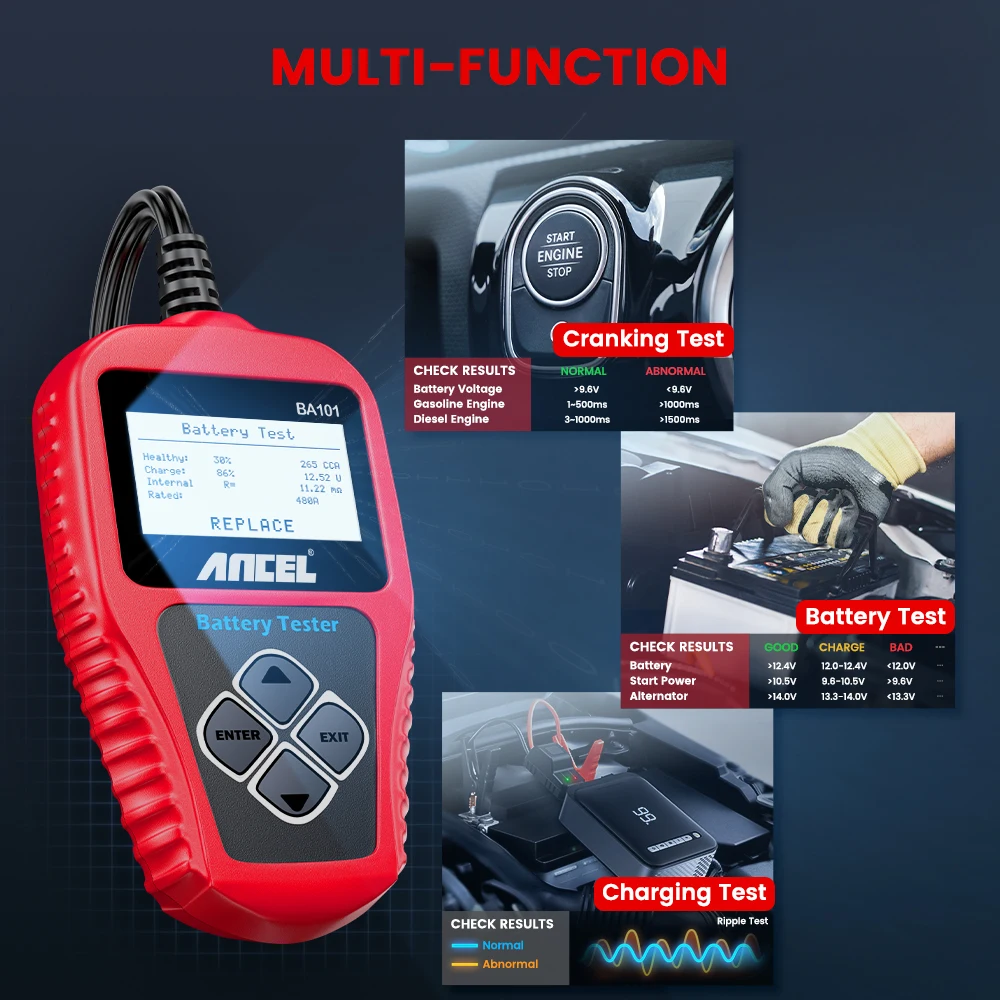

Main functions of BA101 battery tester include： battery test，cranking test，charging test and other additional functions.

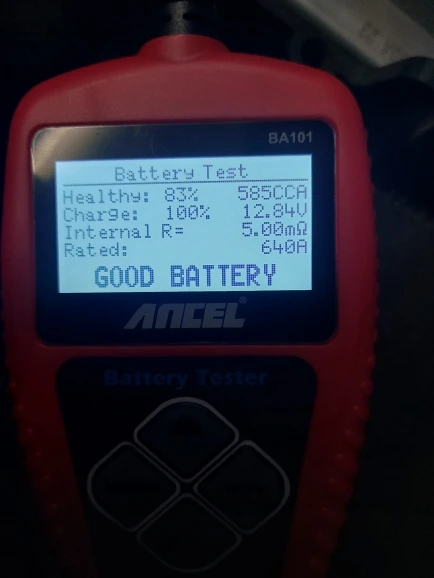

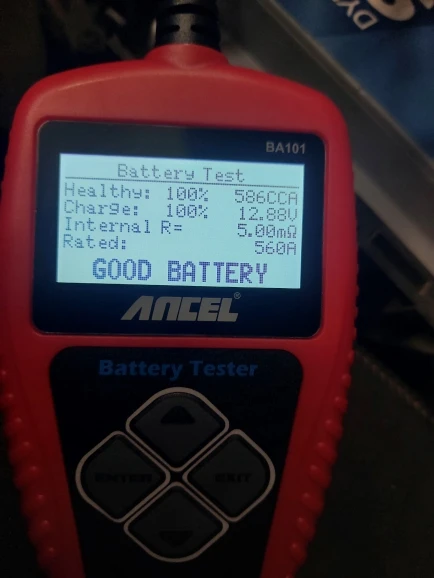

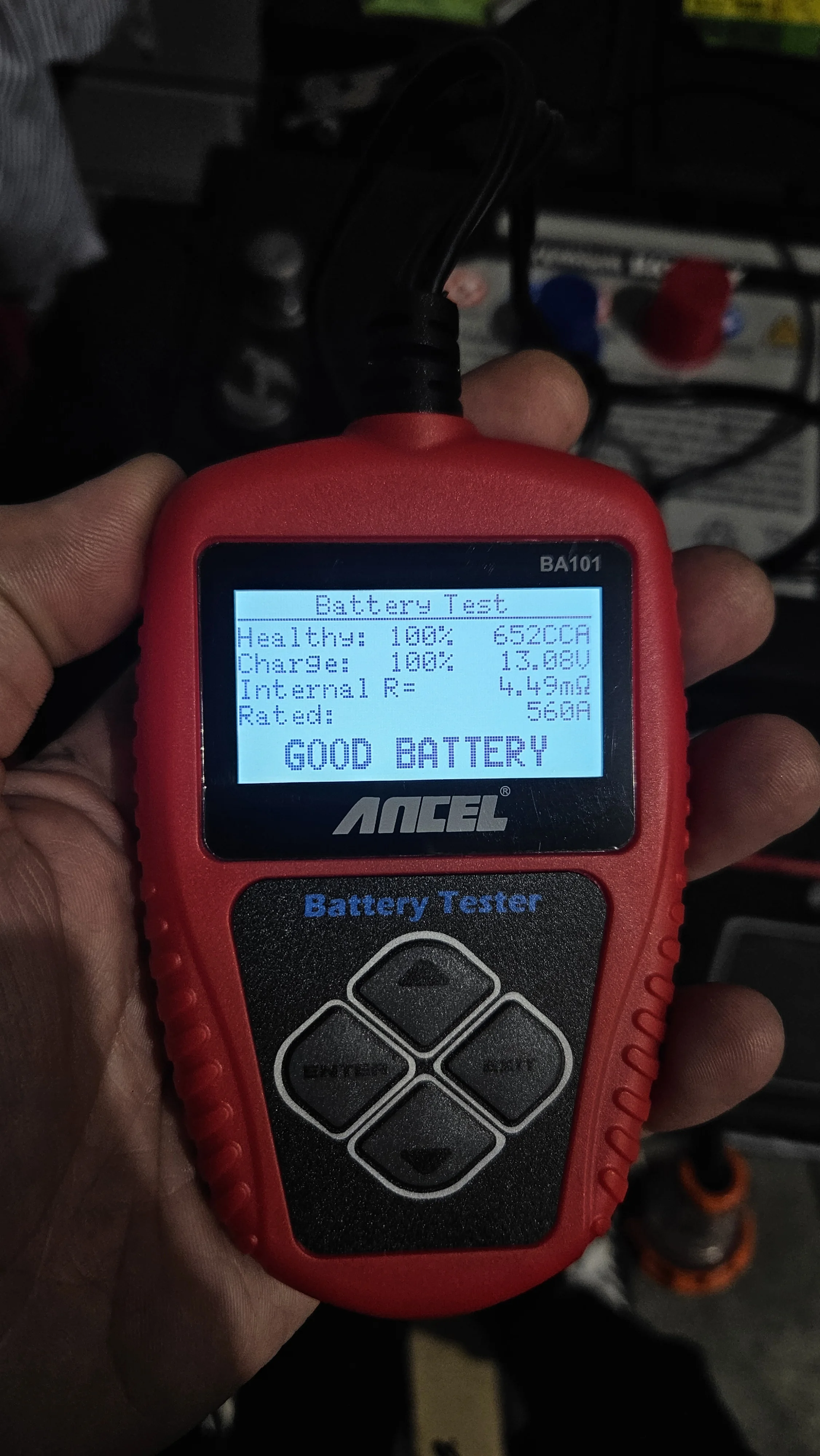

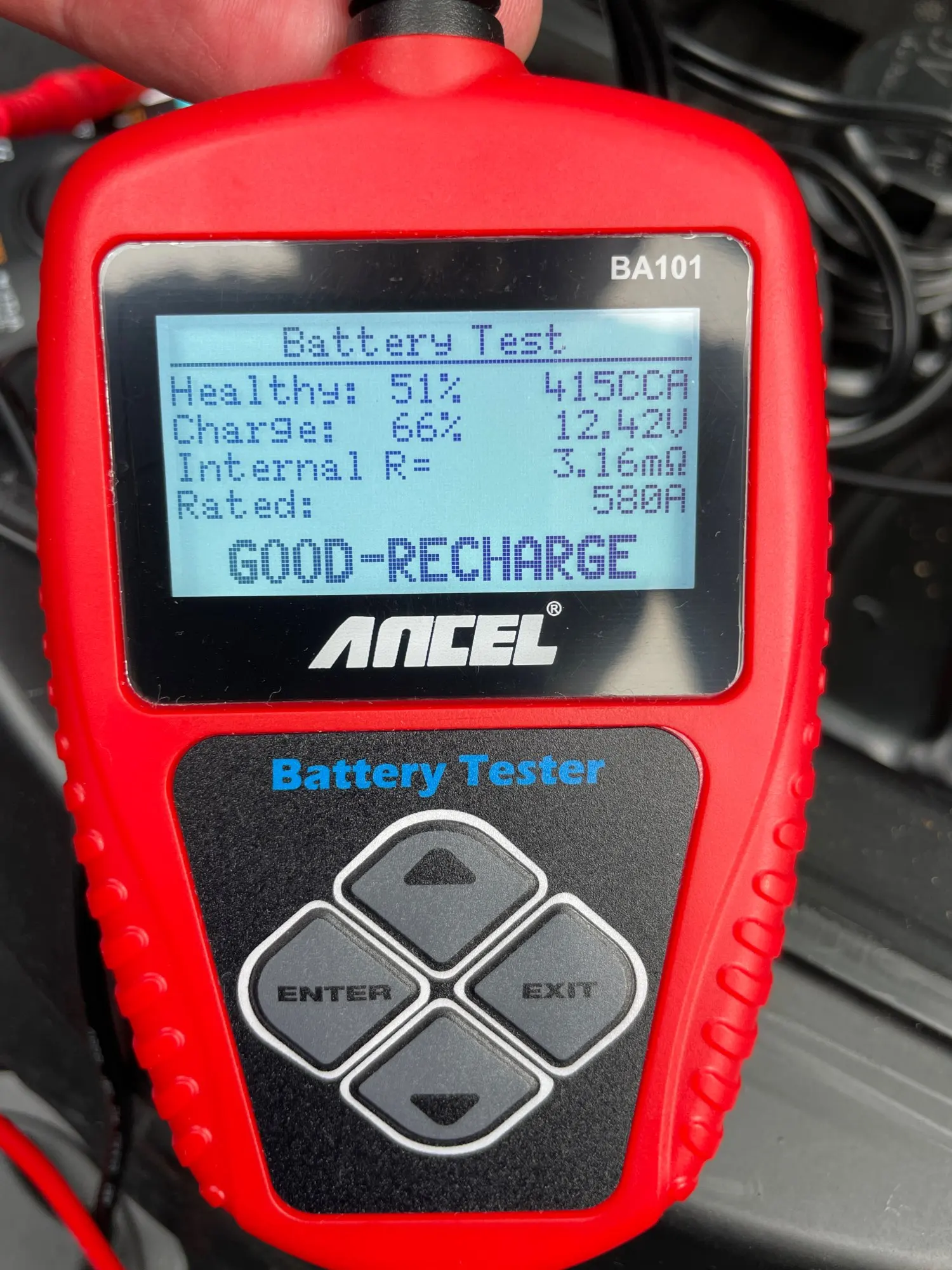

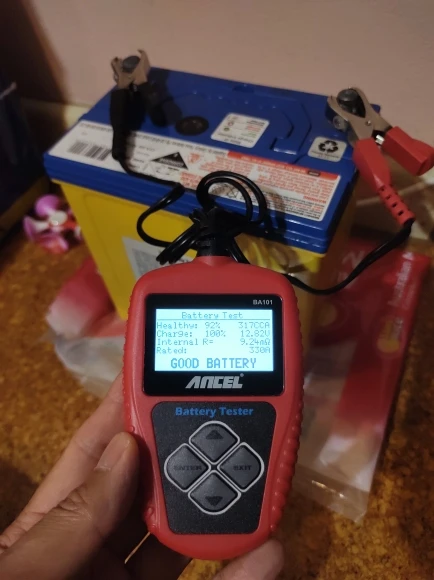

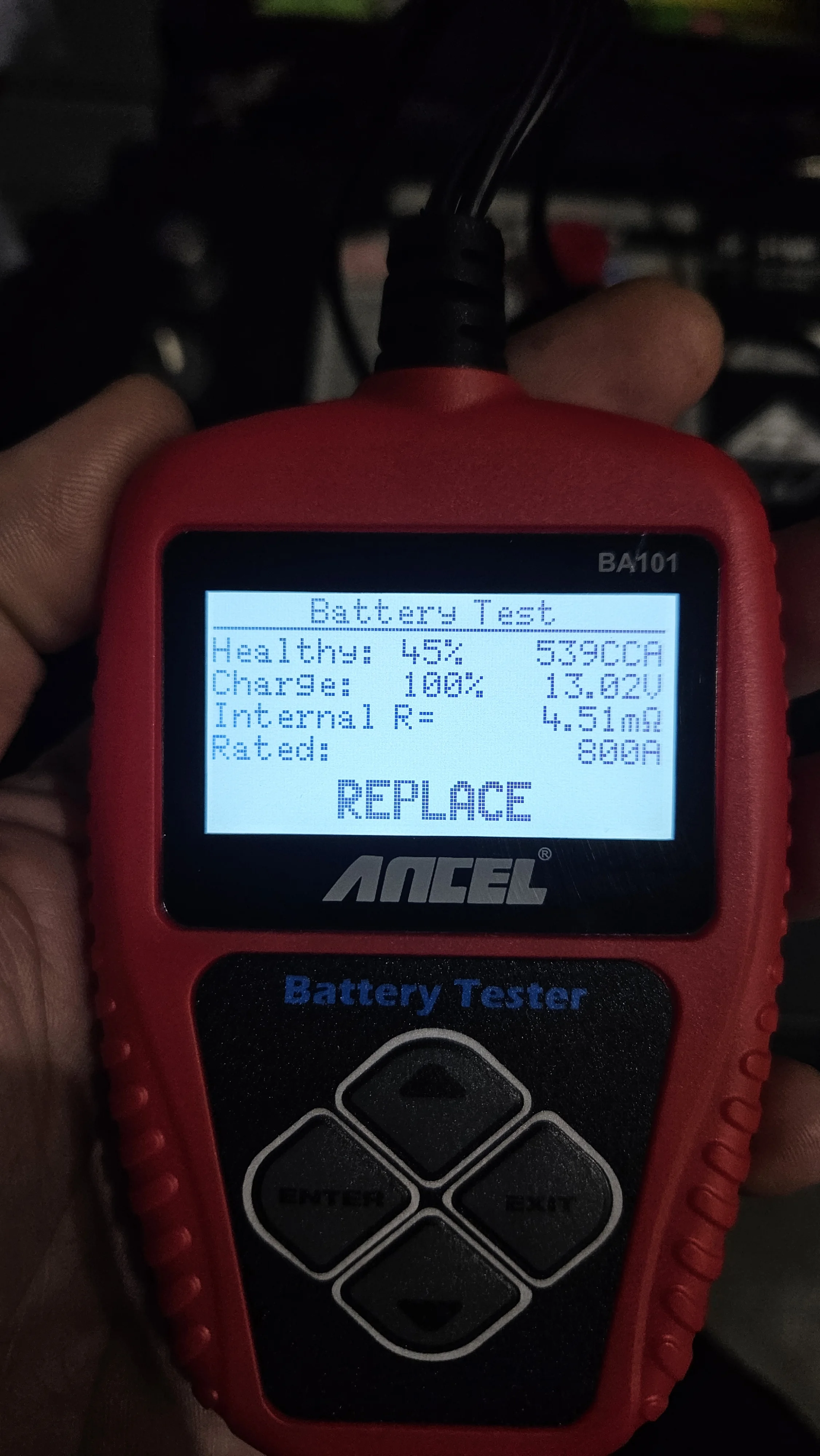

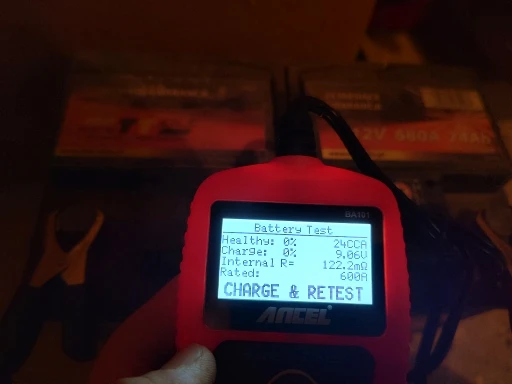

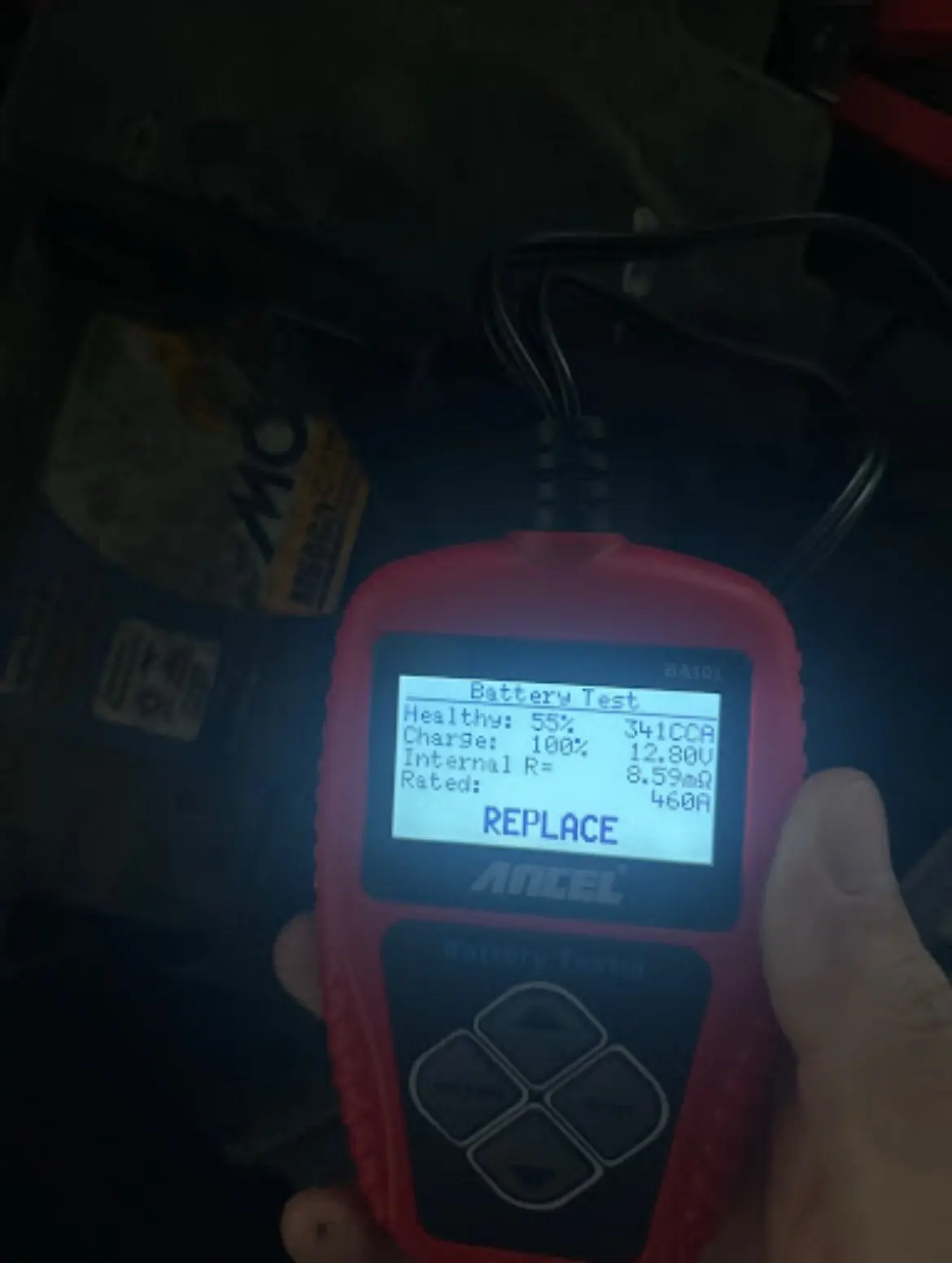

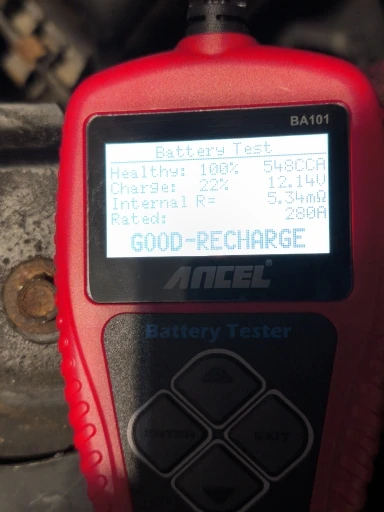

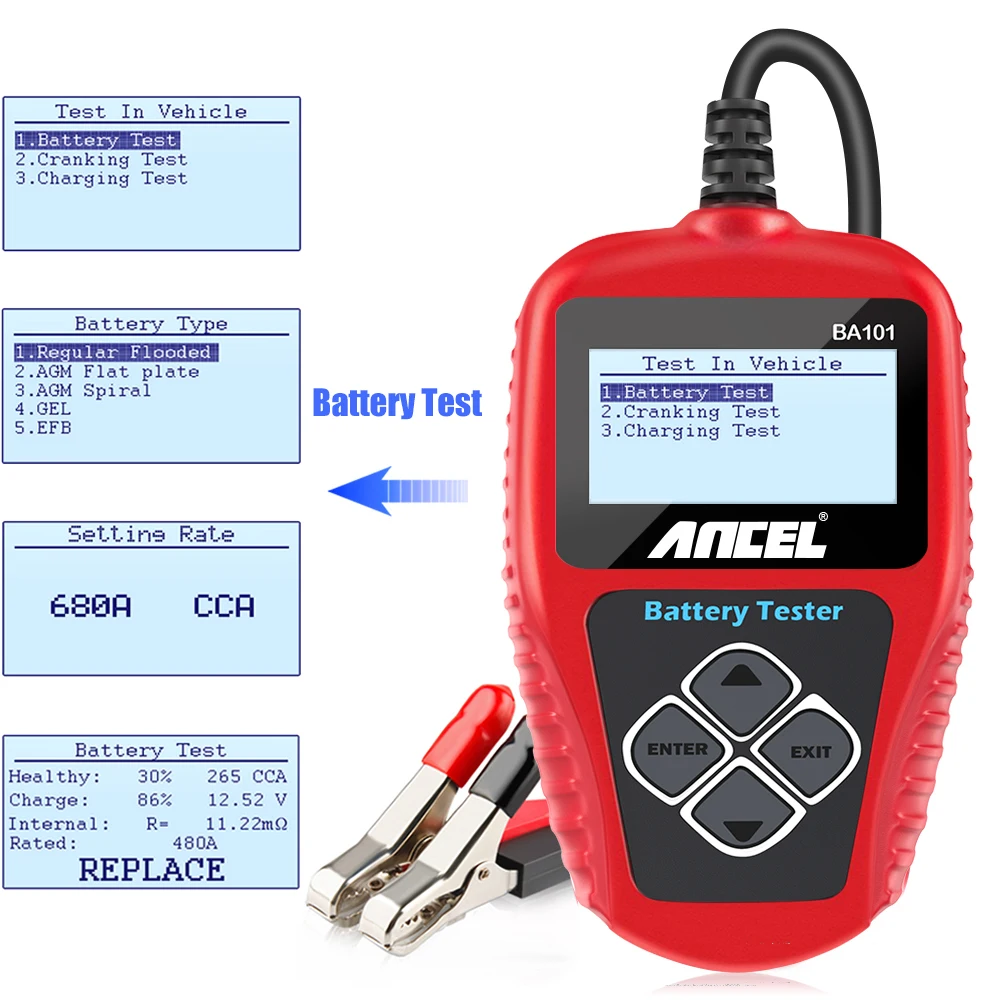

Battery Test
is mainly targeted to analyzethe battery healthy status to calculate the actual cold cranking capability of the battery and the
aging extent, which provide reliable analysis evidence for the test and maintenance of the battery. It notifies the user to replace battery in advance when the battery getting aged.

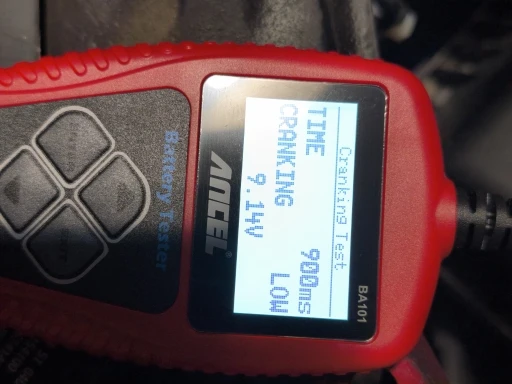

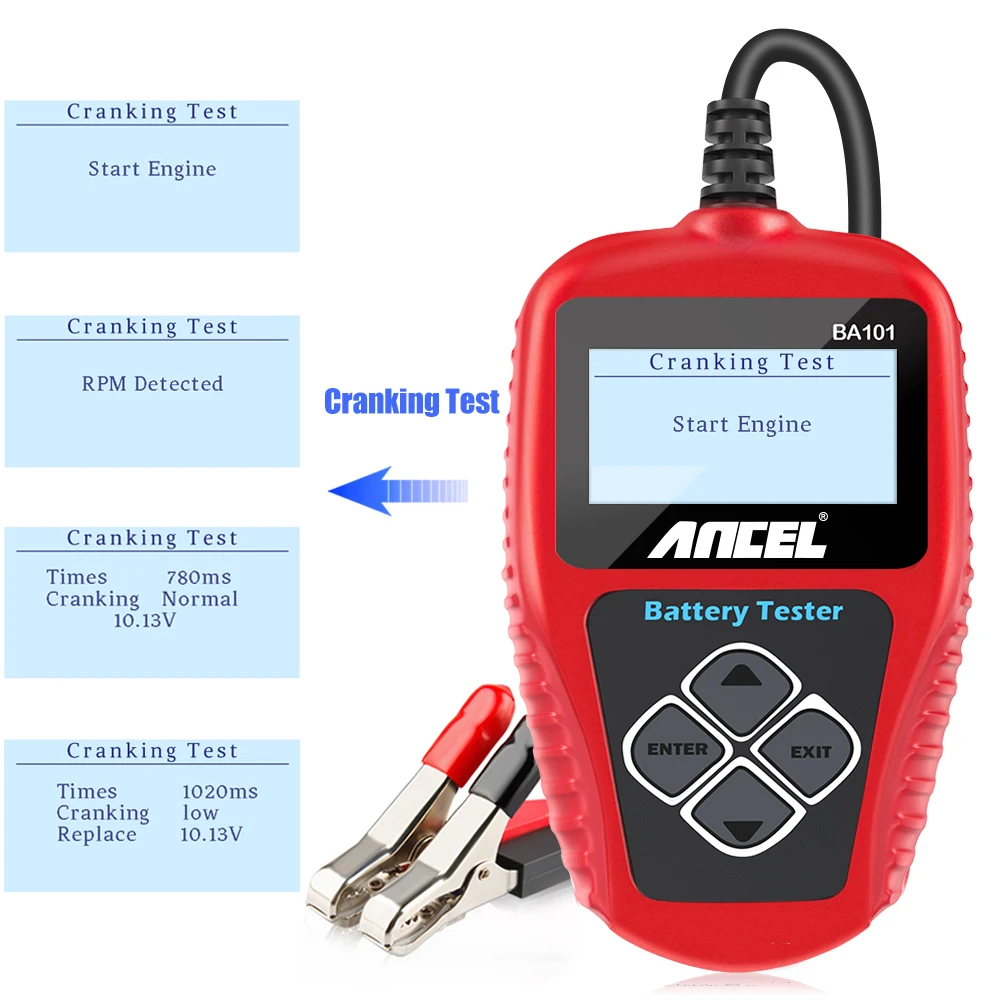

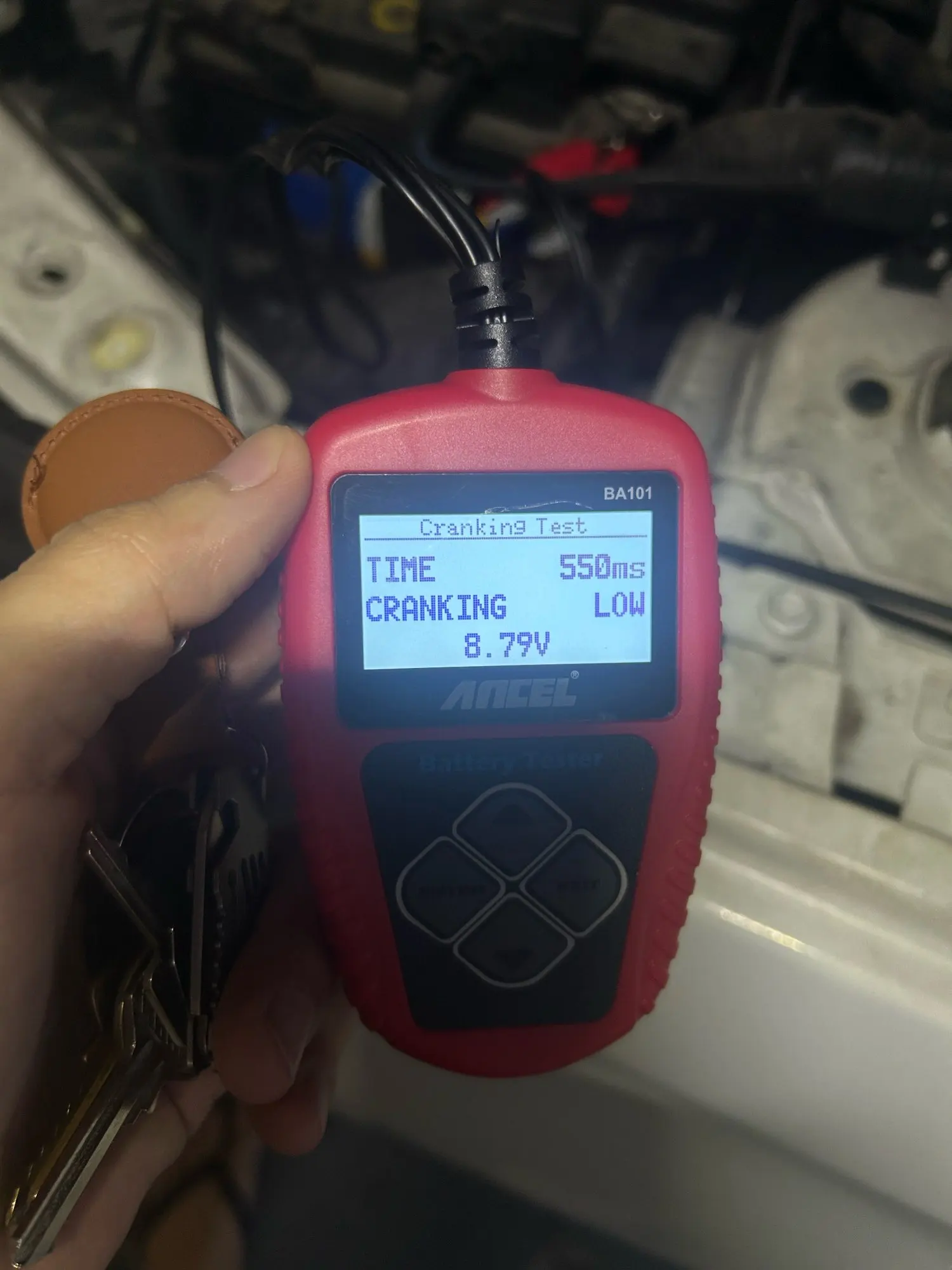

Cranking Test
is mainly to test and analyze the starting motor. Through testing the actual required cranking current and cranking voltage of the starting motor，it can find out whether the starting motor works fine. There are several reasons why the starting motor is abnotmal: lubricating system fault causing the starting loaded torque increasing or rotor friction of the starting motor causing the in creasing friction of the starting motor itself.

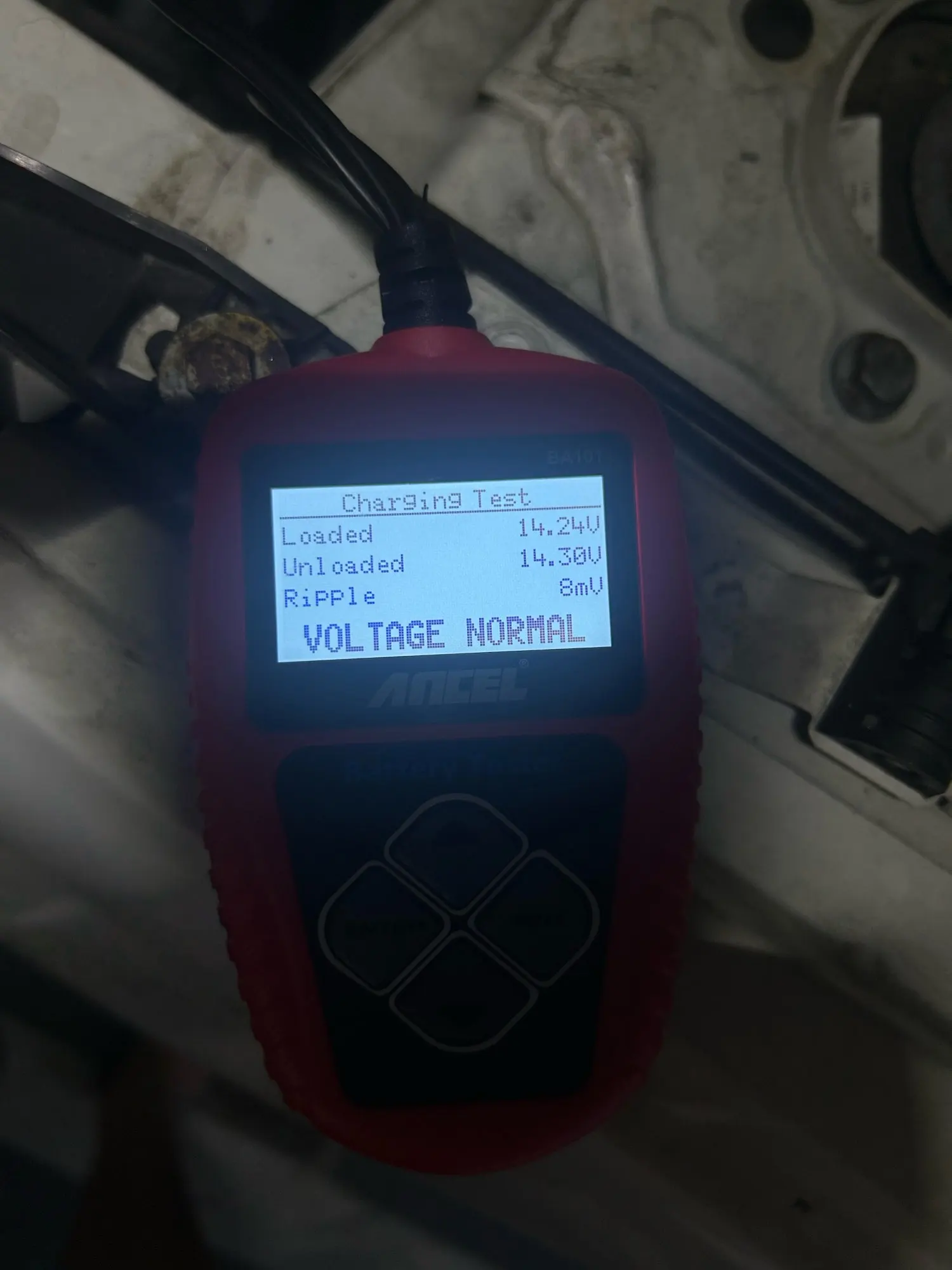

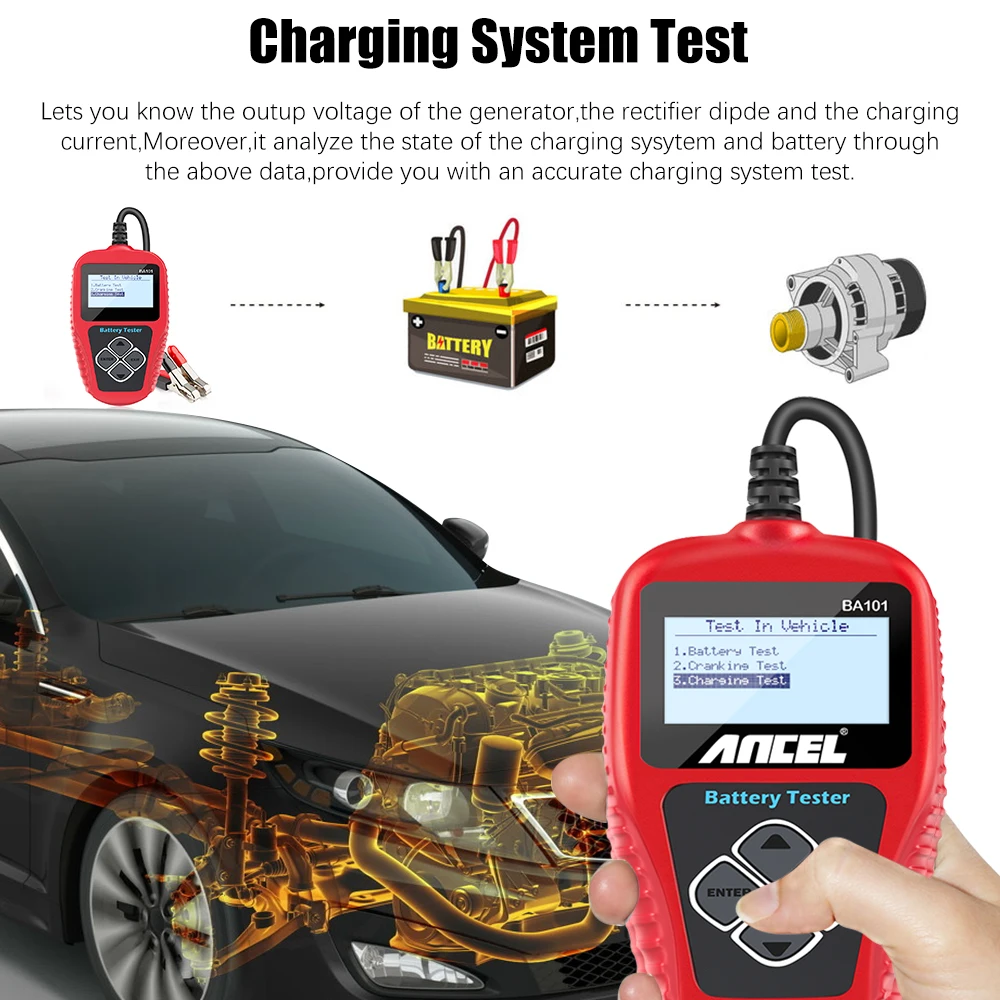

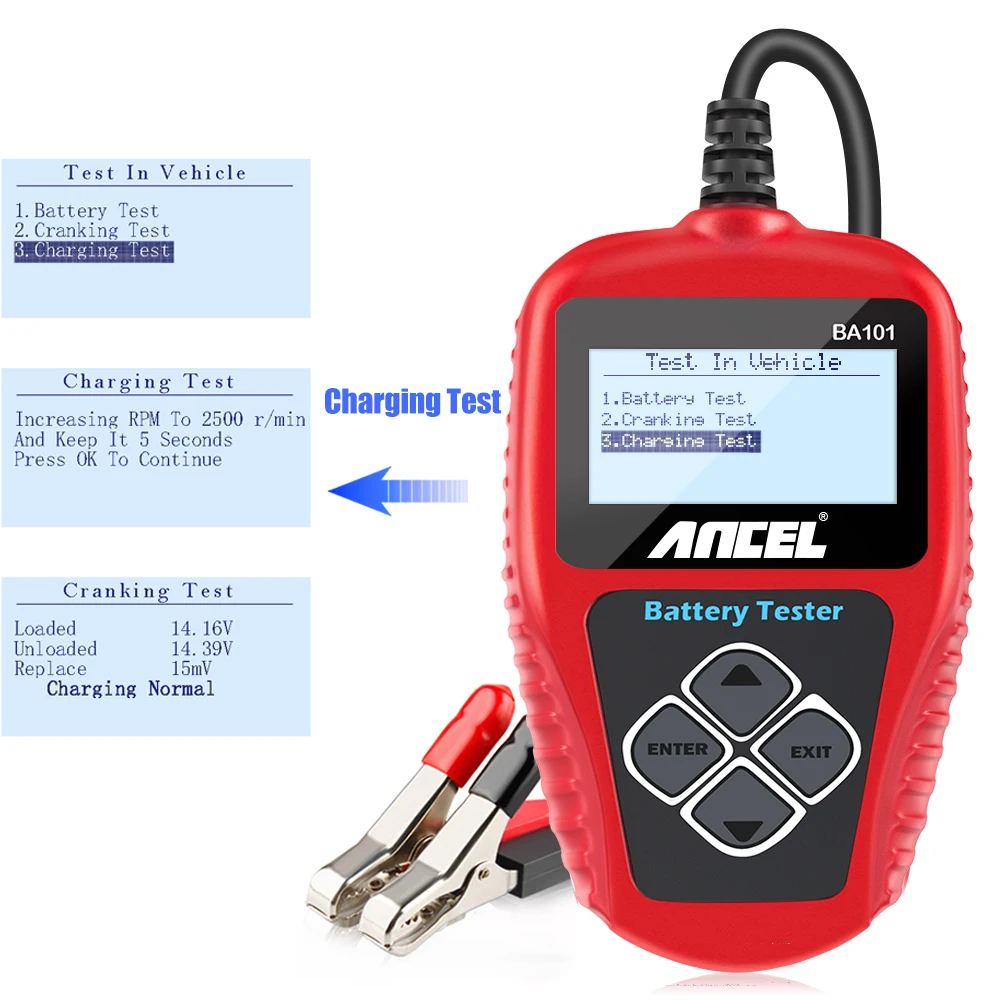

Charging Test
is to check and analyze the charging system， including generator，rectifier，rectifier diode， etc.， thus to find out whether the output voltage of the generator is normal， the rectifier diode works fine and the charging current is normal. Suppose one of the above mentioned parts is not in normal situation， it will lead to over charge or incomplete charge of the battery， thus the battery will be quickly damaged and also greatly shorten the using life of other loaded electrical appliance.
ONE-CLICK QUICK TEST
Technical Parameters:
1.Cold Cranking Amps Measure Range:
2. Voltage Measure Range: 8-30V DC
3.Working Environment Temp: -20°C-60°C
It is applicable for automotive manufacturers， automotive maintenance and repair workshops， automotive battery factories， automotive battery distributors， and educational organizations，etc

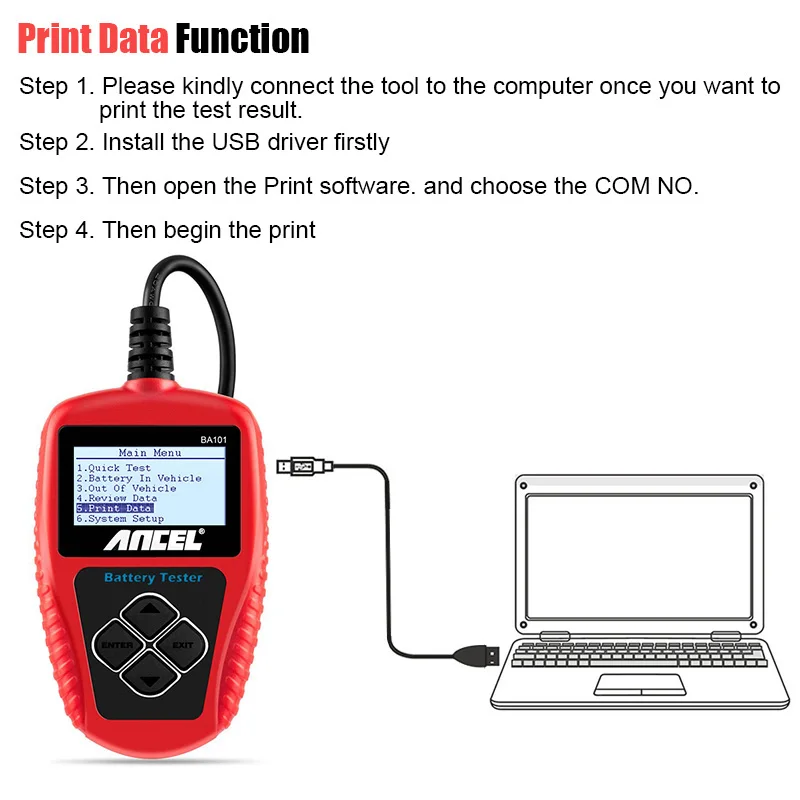

How to Use Print data function ?
Step 1. Please kindly connect the tool to the computer once you want to print the test result;
Step 2. Install the USB driver firstly;
Step 3. Then open the Print software, and choose the COM NO;
Step 4. Then begin the print.
Product Specifications
1) Display：LCD
2) Operating Temperature： 0 to 50℃ (-32 to 122F°)
3) Storage Temperature： -20 to 70℃ (-4 to 158°F)
4) Power-provided via cable from car battery

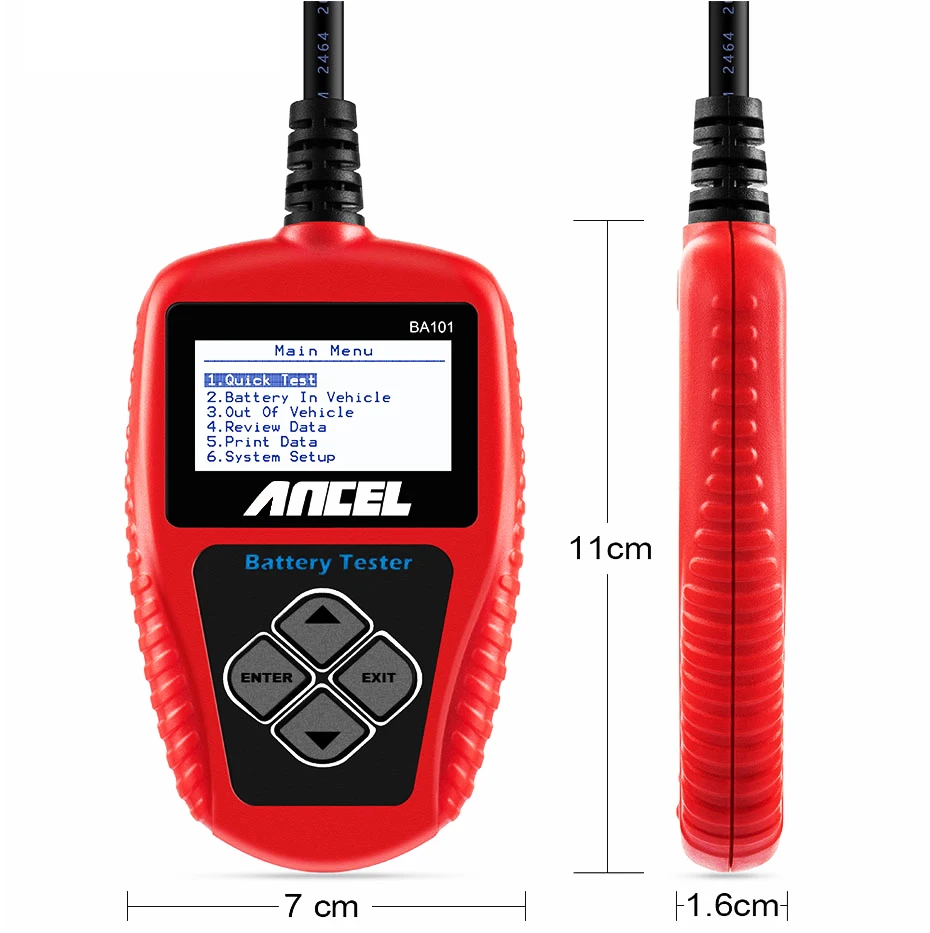

5). Dimensions：
Length:110 mm (4.3″) Width: 70 mm (2.75″”) Height: 16mm (0.63″”)
Weight: 450g

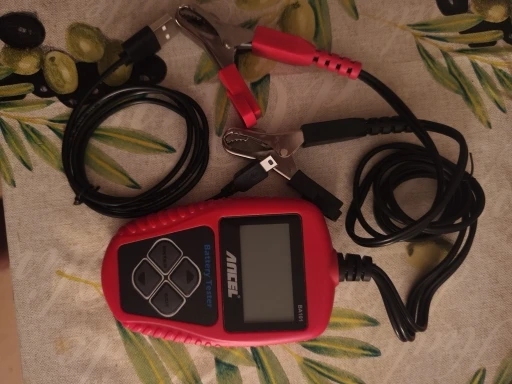

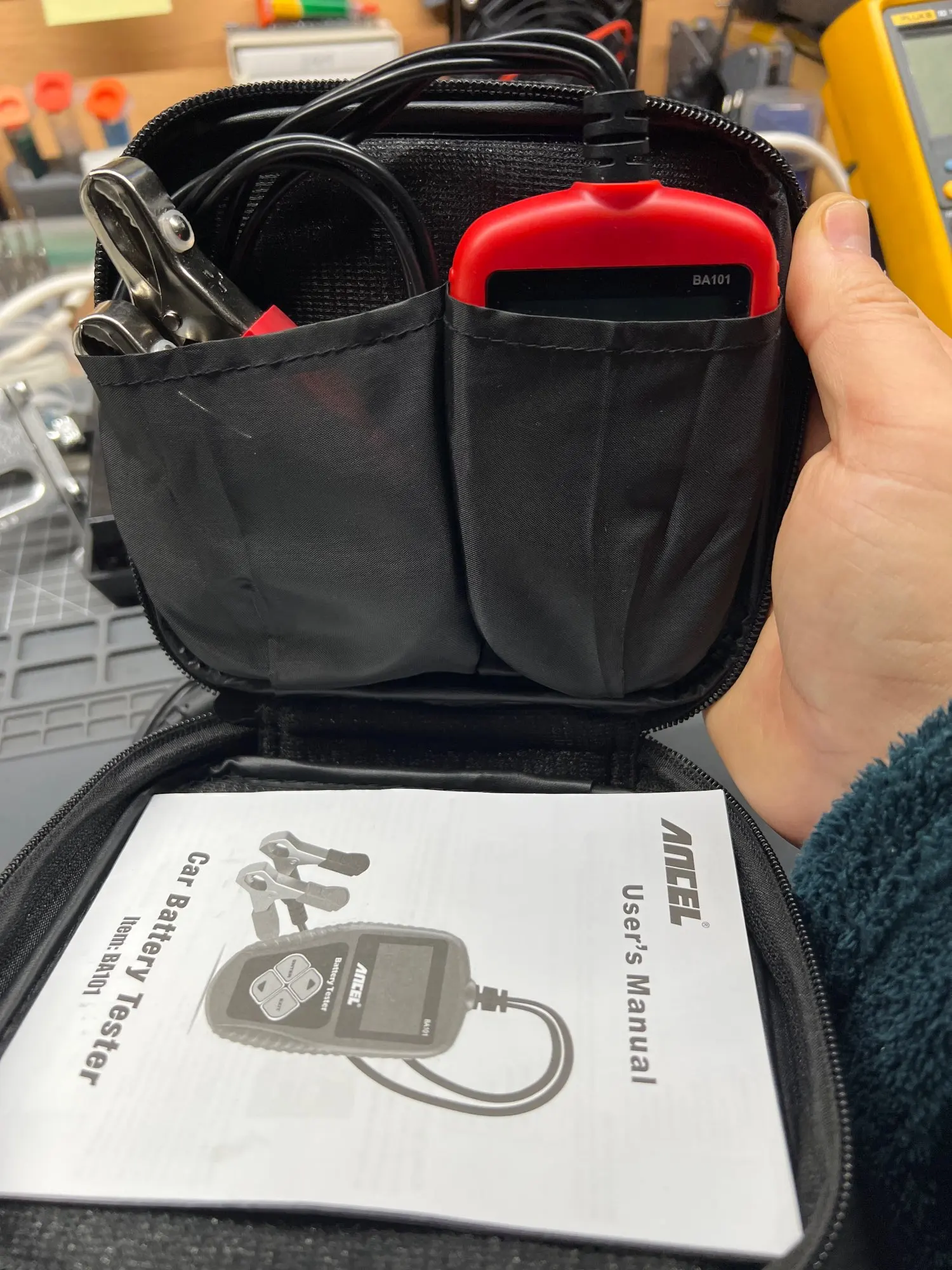

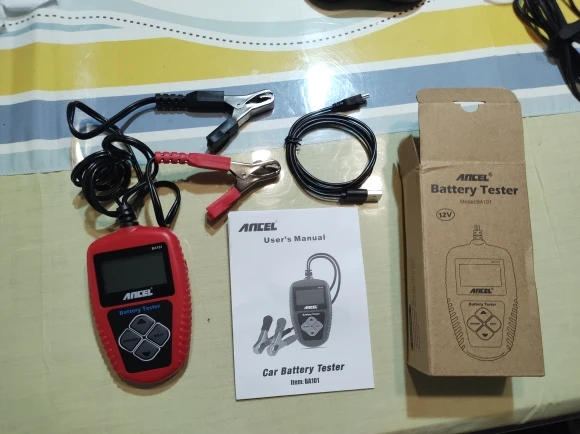

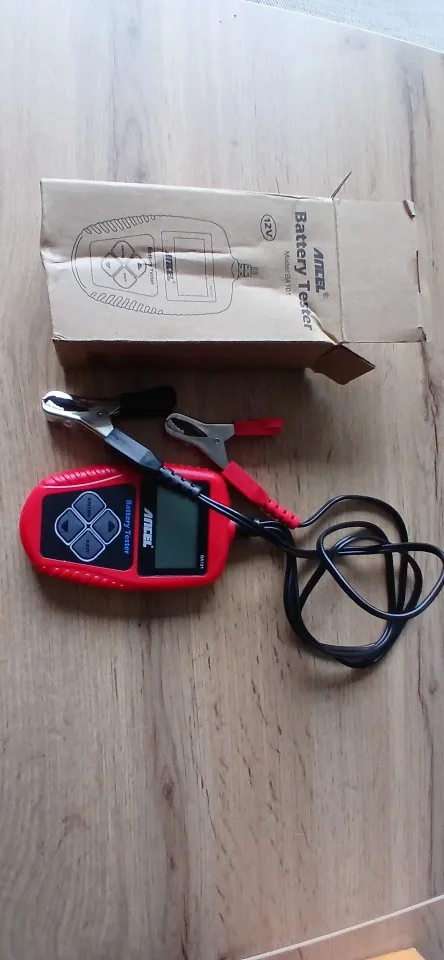

Accessories Include
1) 1pc Mini USB Cable–Provides link to unit and computer for printing.
2) 1pc CD Driver- Print software inside
3) 1pc User’s Manual
The product arrived in good condition, the shipping & delivery were fast. the product seems of quality. i tested it briefly and the results seems reliable.
At first glance, everything seems to be working. We tested 3 batteries - approximately everything is working/ displaying correctly. The other functions have not been tested yet.

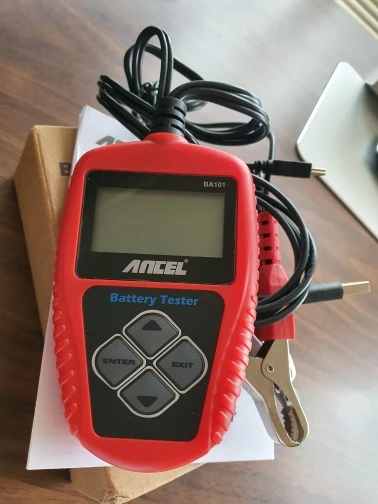

Product arrived on time. Brand new out of the box and works flawlessly, no fault whatsoever. Packaging box slightly slightly very slightly damaged not caused by seller but likely from shipping but that is very common and not unexpected. Would buy again from seller!
Excellent product as described. Highly recommend seller. Arrived fast and already in the workshop working overtime.
Fast shipping, very well-made tester allows a view of essential battery parameters.
Item delivered on time everything is fine no problem at all
Perfect! Cheaper than amazon, just as fast shipping, and works as described. A+++
I tried it, excellent quality, it fulfills its function.
Perfect for the described purpose, multiple options through a very clear and intuitive menu. Adjusted size for carrying and handling.
Excellent products as described, already test works ok
Great device, performs the battery testing function very well. Truly a diagnostic tool rather than just a voltmeter. Arrived very quickly in RJ.
A very good battery tester, thanks to its use I was able to report several faulty batteries. I definitely recommend it.
Working great just used it with my car...

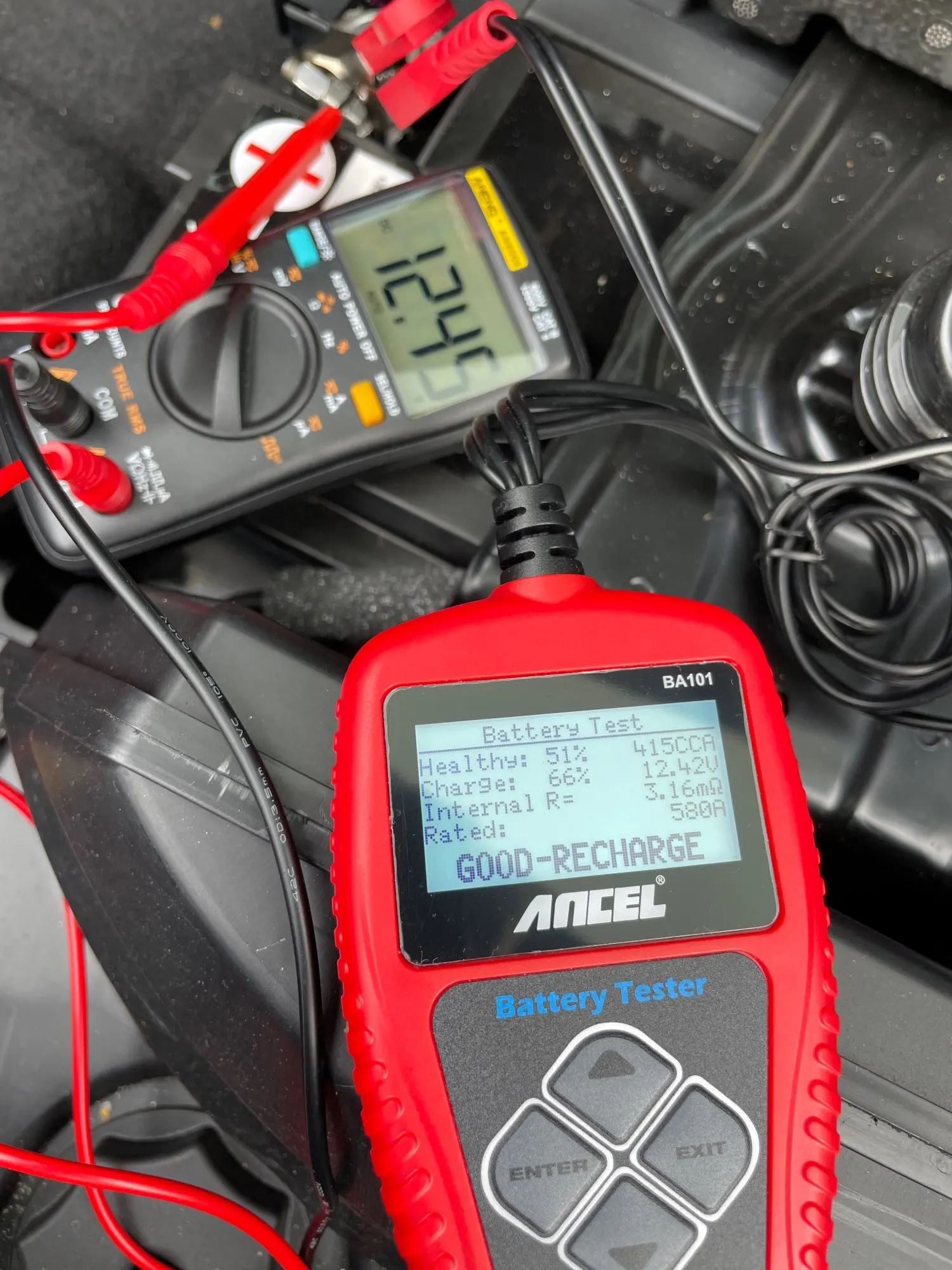

The voltage measurement is quite accurate, the difference with the Aneng AN8008 multimeter is within 0. 03 V. Also compared the readings with the Ancel VM200 battery monitor - the difference in open circuit voltage is zero. 02 V, but in "cranking test" mode the discrepancies were more noticeable - both in minimal voltage drop and in the duration of motor startup. But I only did a few tests; for statistics, of course, more would be needed. There's no way to compare the internal resistance measurements of the battery, but from YouTube tests it seems like this device is quite reliable. Overall satisfied.
Tested it side to side with an oex battery tester with printer lv8111-8black, which is 10 times more expensive, and got the results which are pretty simmilar. So. Why to pay more? It works.
Good product and fast delivery
I have charged it and it works. It has multiple languages including Spanish. When I test it on the battery, I will say more. Manual in English
