BQCC For Volkswagen 7″ HD Car MP5 Player FM BT Colorful lights RDS Radio Mirrorlink USB charging Wireless Android AUTO/ Carplay
Loving life, loving shopping.
☆Tips:
1.The installation requires a little knowledge of electronic products. Please install it with the help of professional

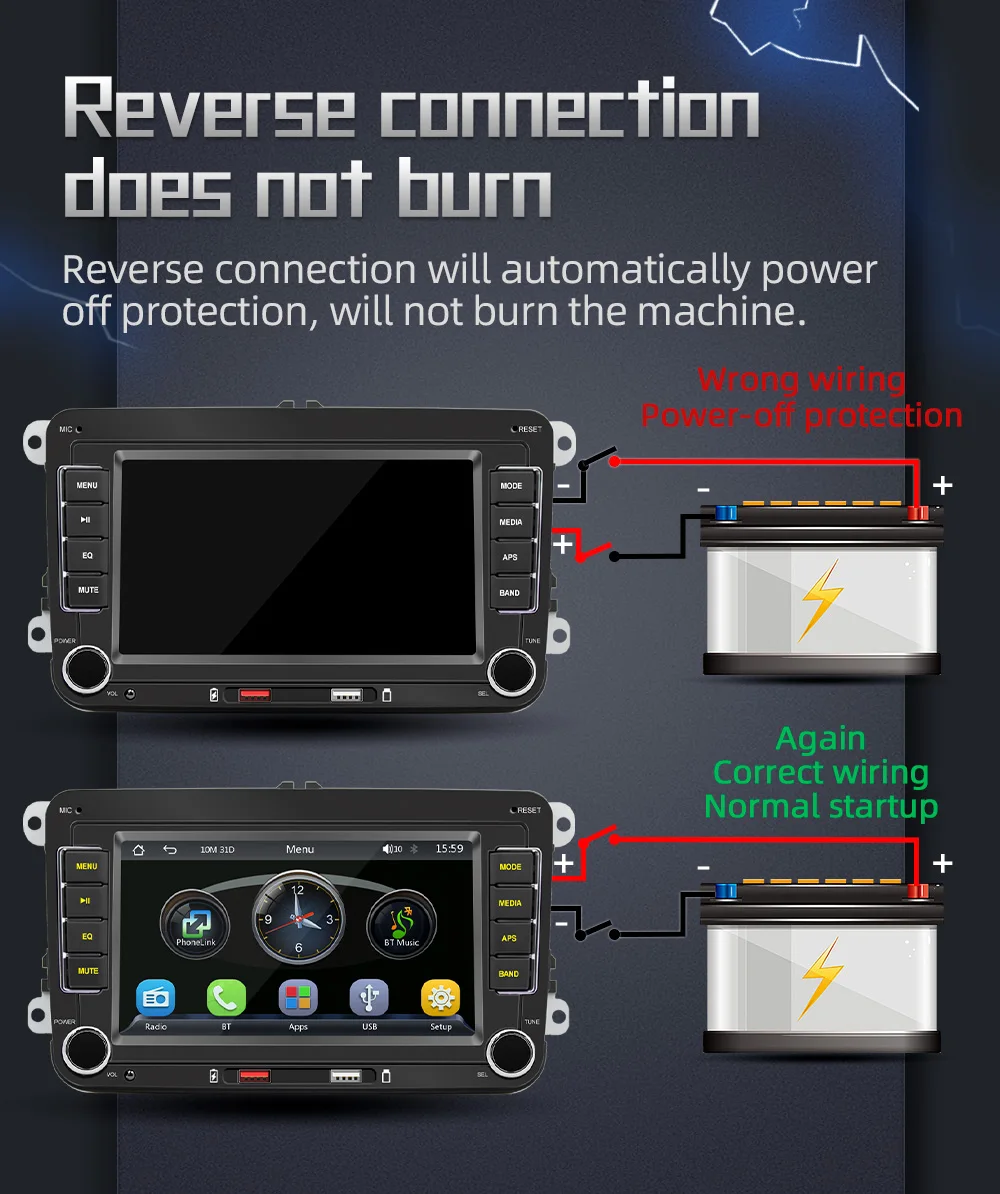

2. After receiving the product, please try to check whether the machine is normal, and then install it (testing method: connect red and yellow lines to the positive pole and black line to the negative pole of the 12V power supply). When installing, please be careful not to connect the line incorrectly, so as not to affect the normal use. When connecting speaker wires, pay attention to the positive and negative poles
3.This product is an Android system, you can download the required software including maps, very convenient
Basic parameters
Model : F9070 (7 inches)
Type : Car MP5
System : Allwinner melis system
Software solution : F133

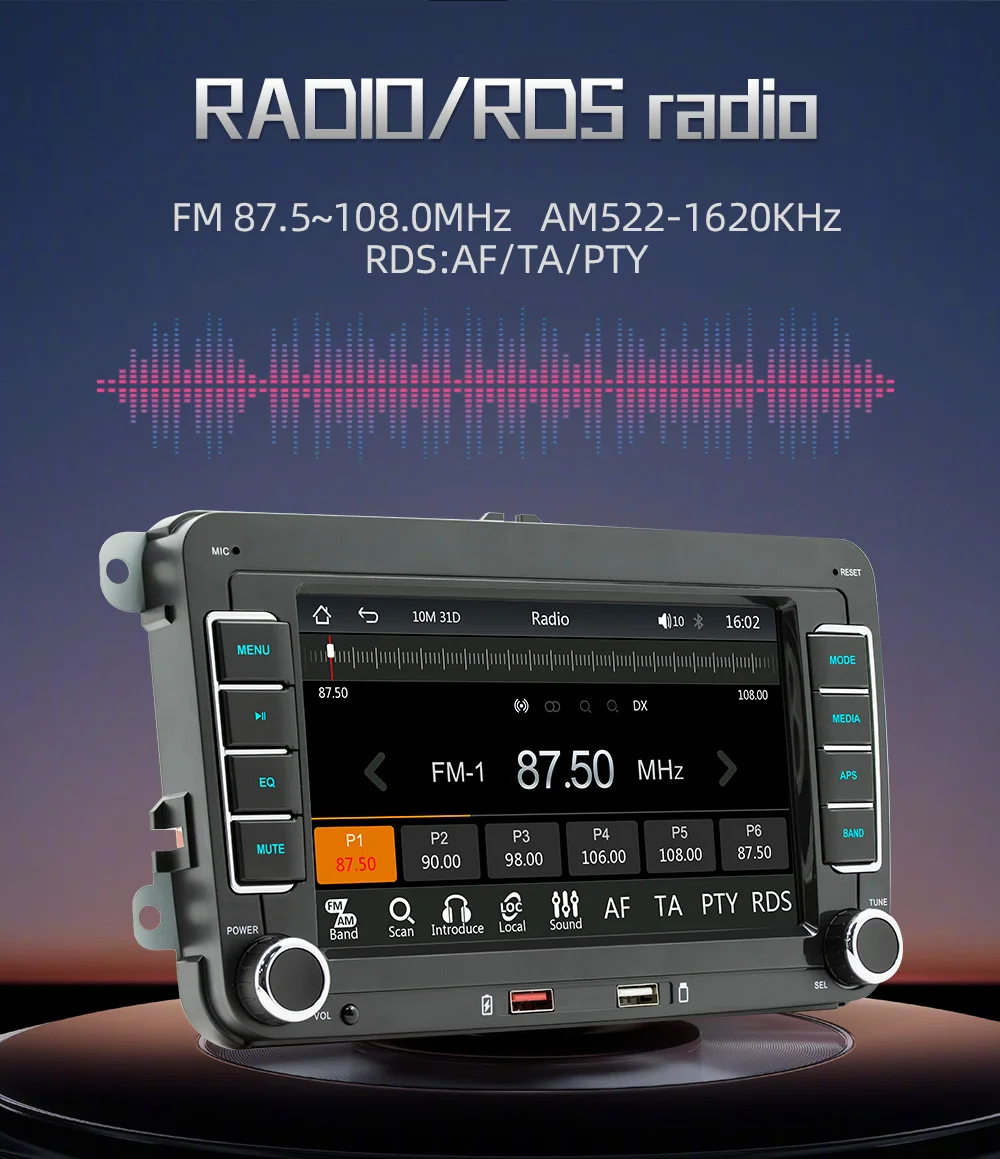

Radio frequency : FM 87.5~108.0MHz AM522-1620KHz
Radio IC : 4732
Amplifier IC : CD7388CZ
Output power : 60Wx4
Working voltage : 12~14.4V
Working temperature : -10~60℃
Bluetooth version : 5.1 version (default name: Carkit)
Wifi frequency : not supported
GPS signal : not supported
Performance parameters
CPU : F133
Running memory : 533M
Storage memory : None
Display resolution : 1024×600
Screen size : 7 inches HD
Dimension parameters

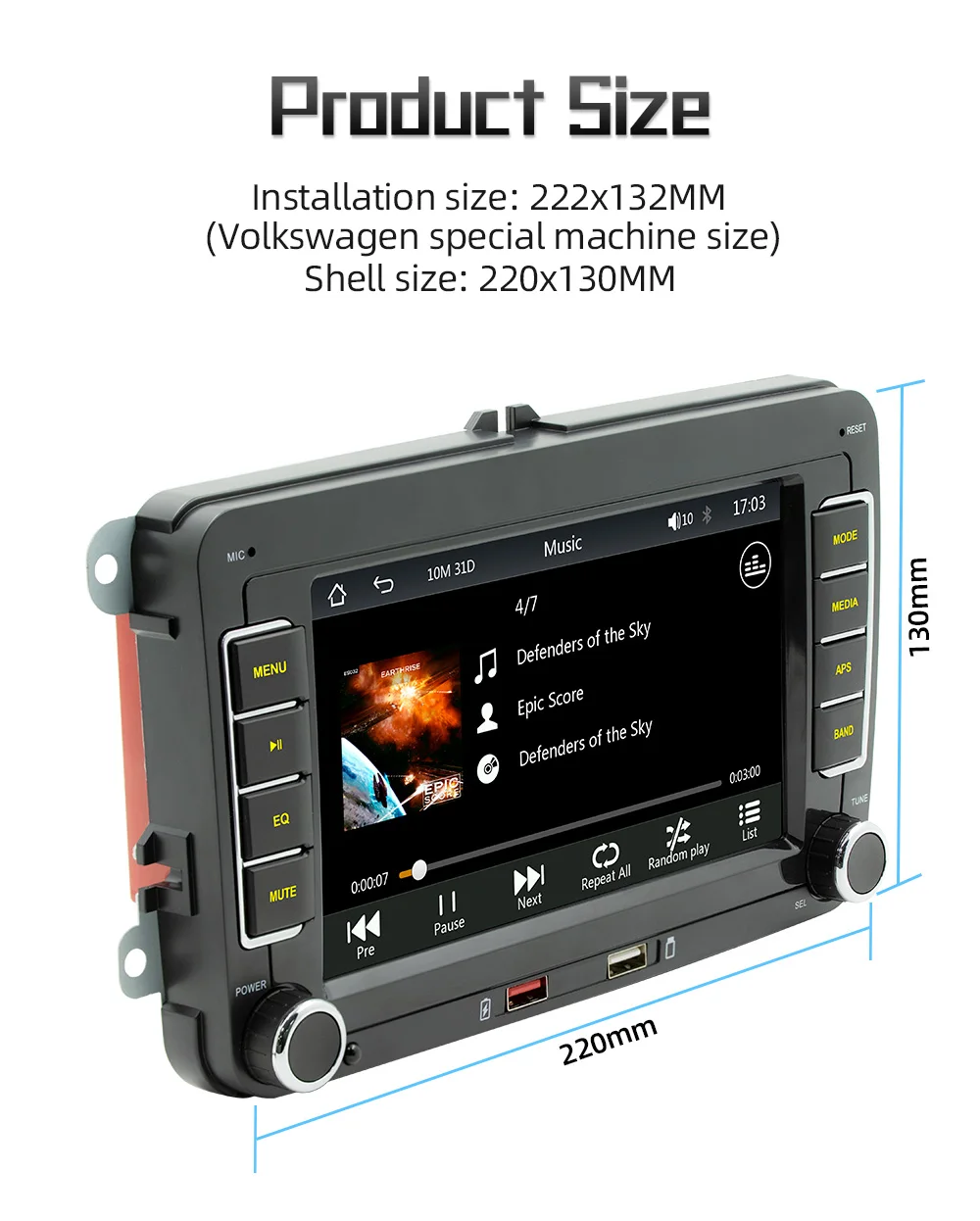

Installation size : 222x132MM (Volkswagen dedicated machine size)
Case size : 220x130MM
Host depth : 30MM
Color box size : 290x190x103MM (cowhide box)
FWC size : 592x382x355MM
FWC number : 12
Weight parameters
Single unit weight : 1.02KG
FWC net weight : 12.24KG
FWC gross weight : 13.10KG
Function parameters

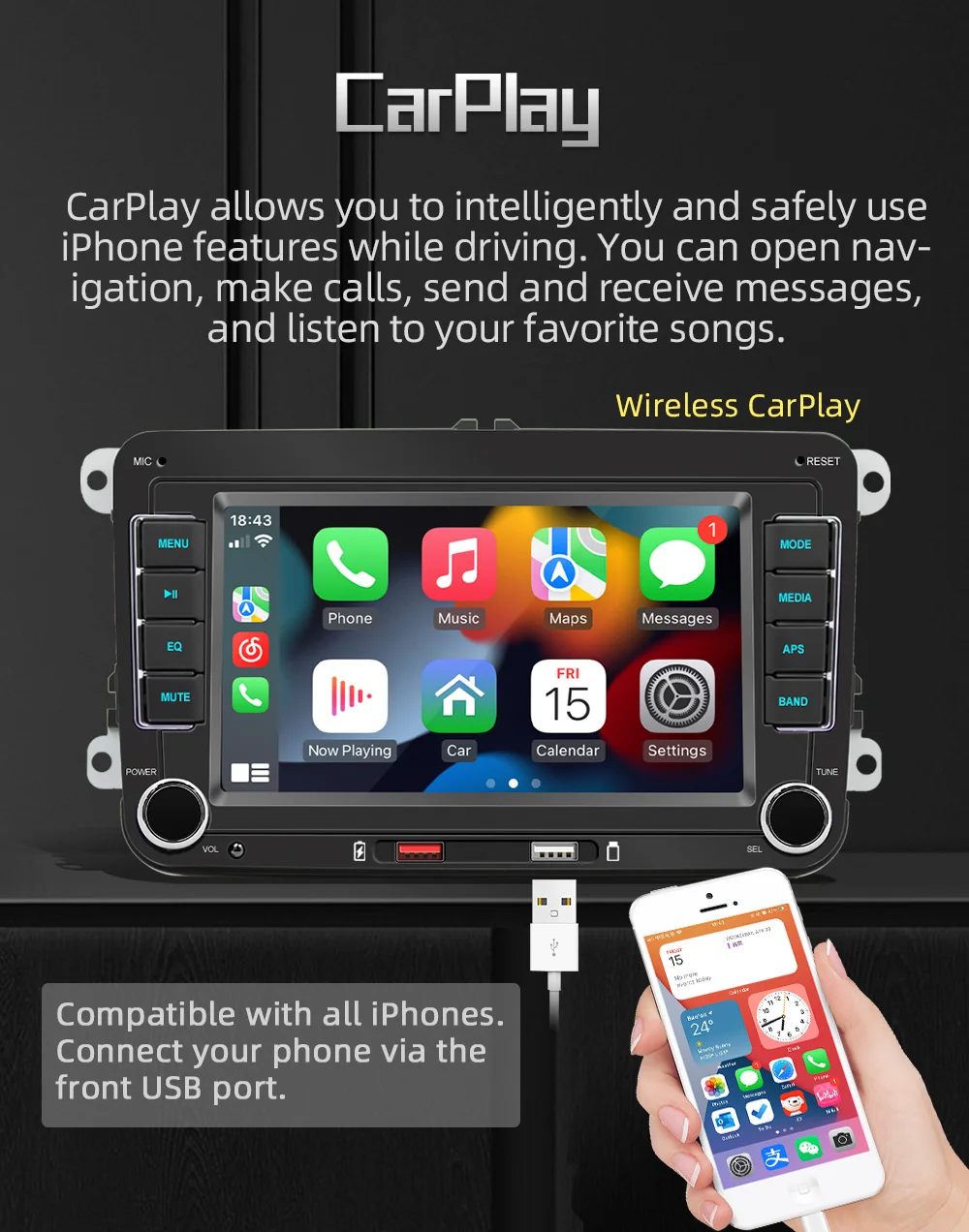

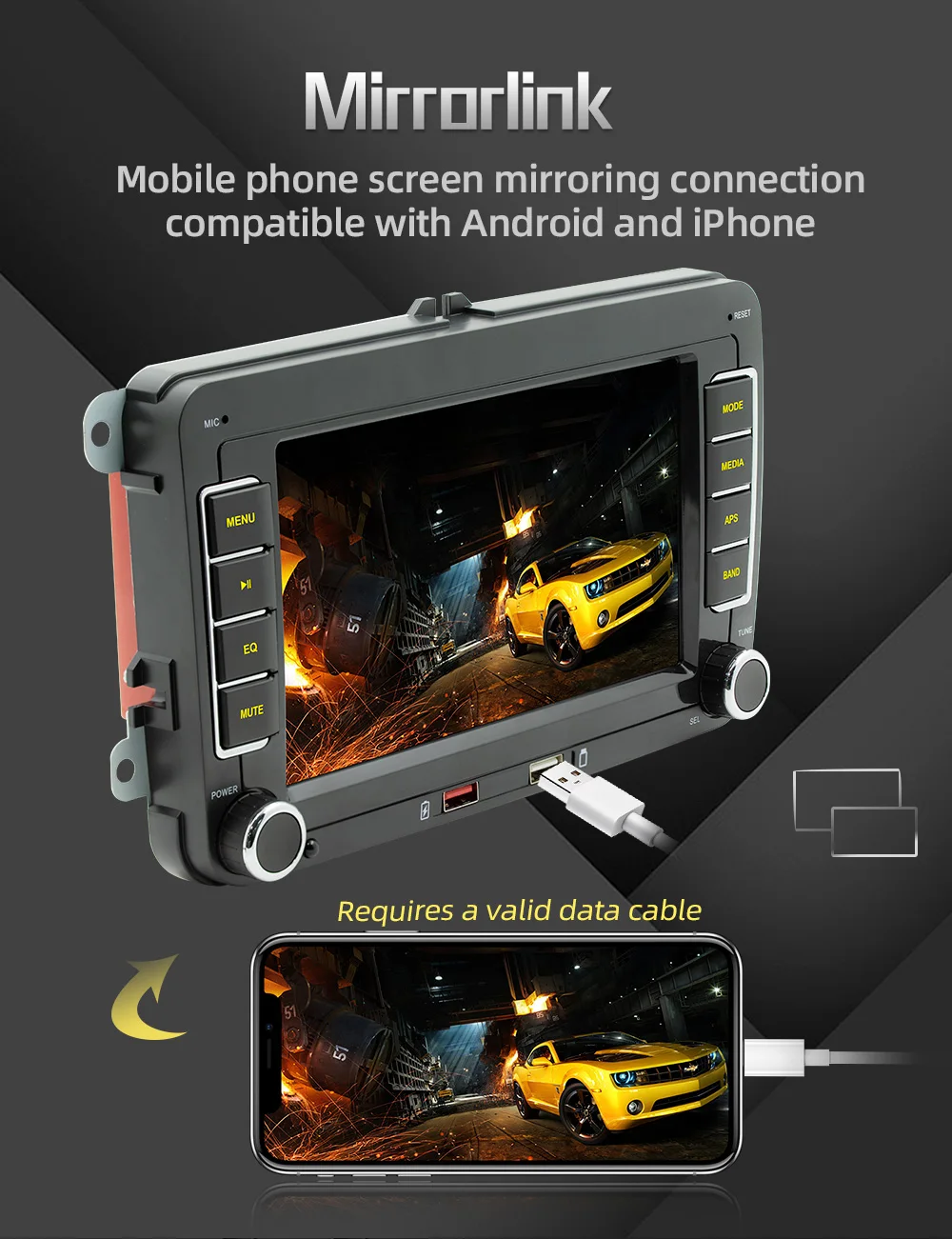

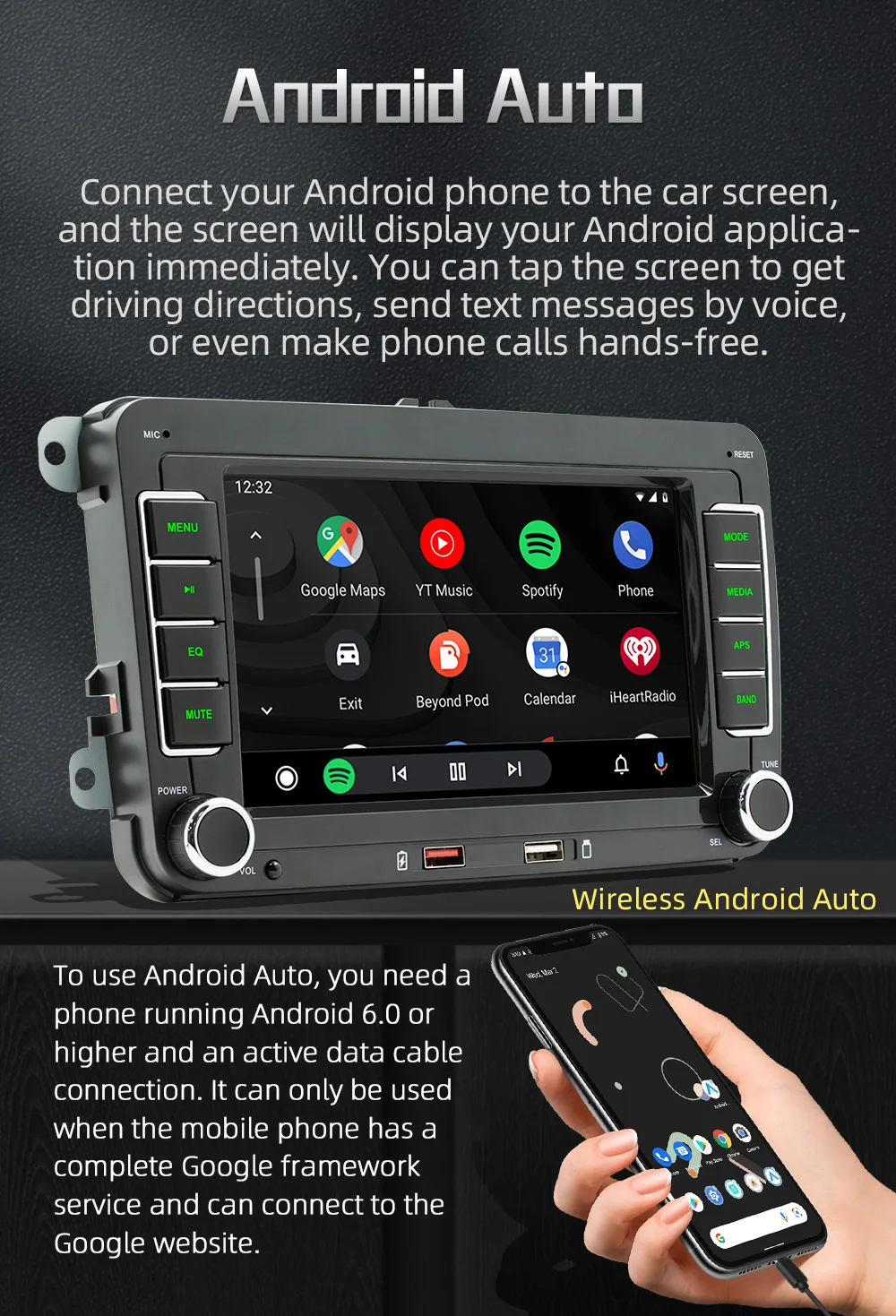

Mobile phone interconnection : support (Apple/Android)
Location and car search : not supported
Screen rotation : not supported

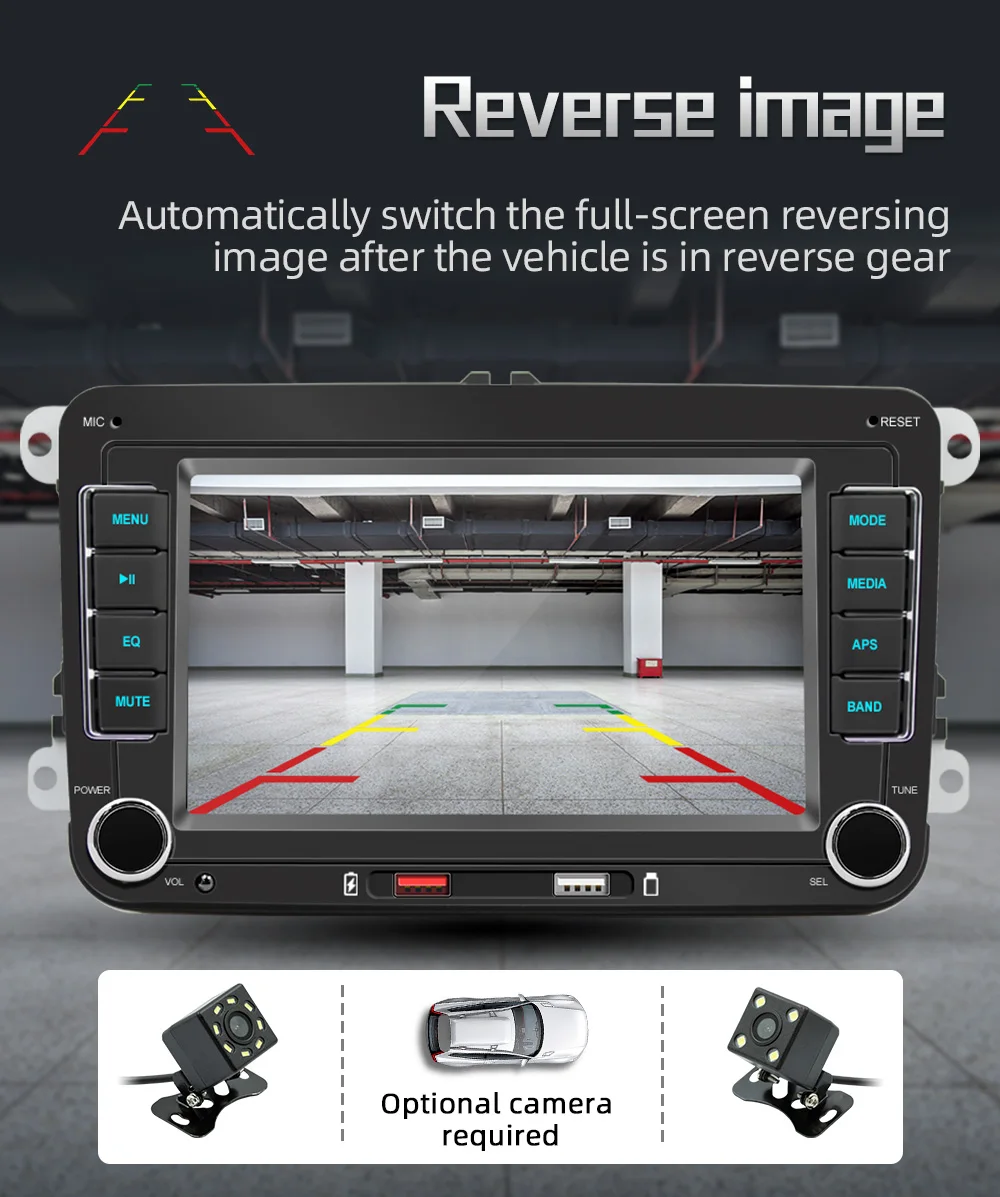

Reversing image : support (camera optional)
Play video warning : support
Steering wheel control support button learning
Video output : support
Offline map : not supported
Driving recorder : support (optional)
GPS navigation : not supported

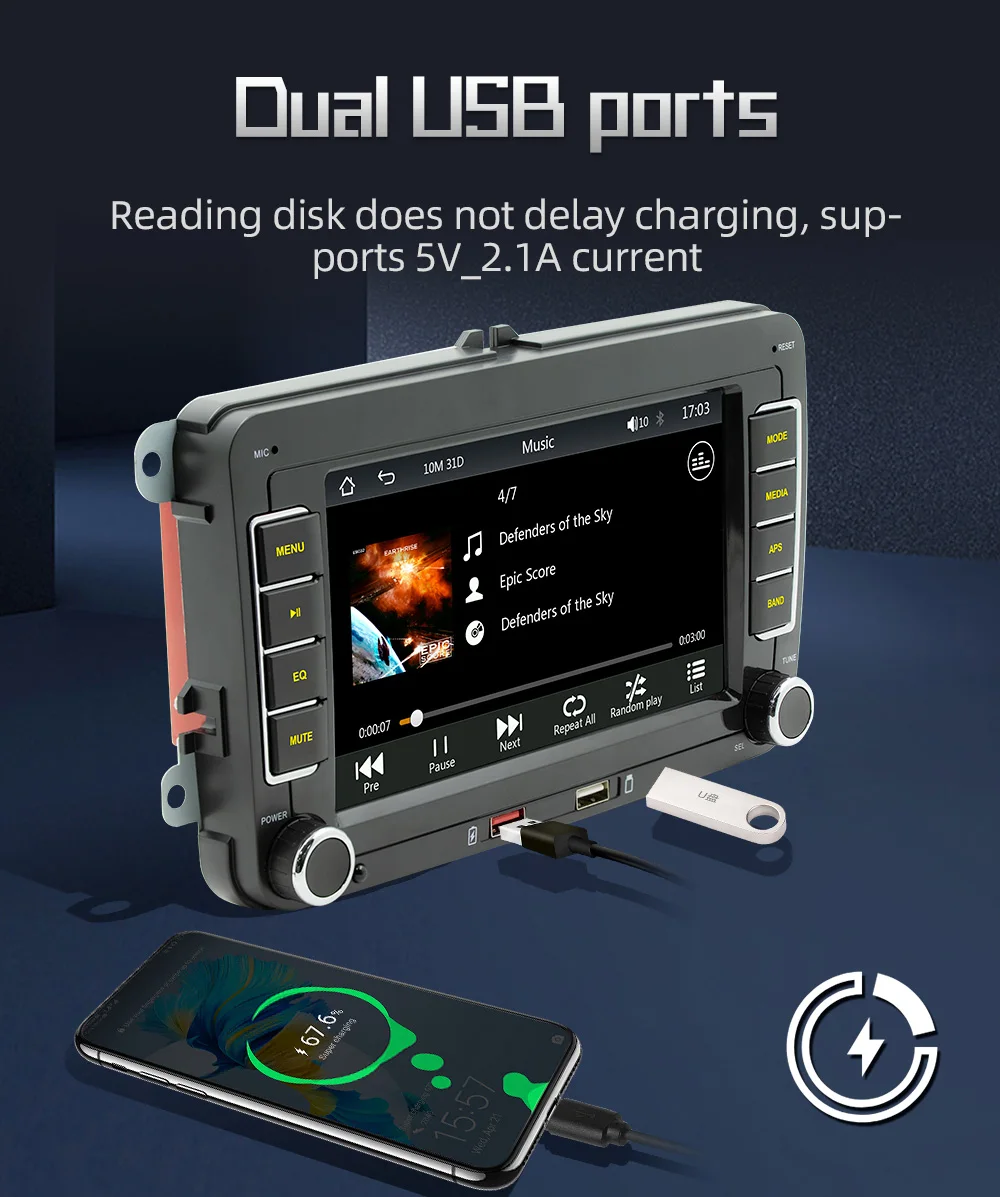

USB interface front USB2.0 reading (white) + rear USB2.0 reading x2 (USB1 unavailable) + front 2.1A charging interface (red) + rear 2.1A charging interface + reserved test port
External microphone interface : support
Reset button : support

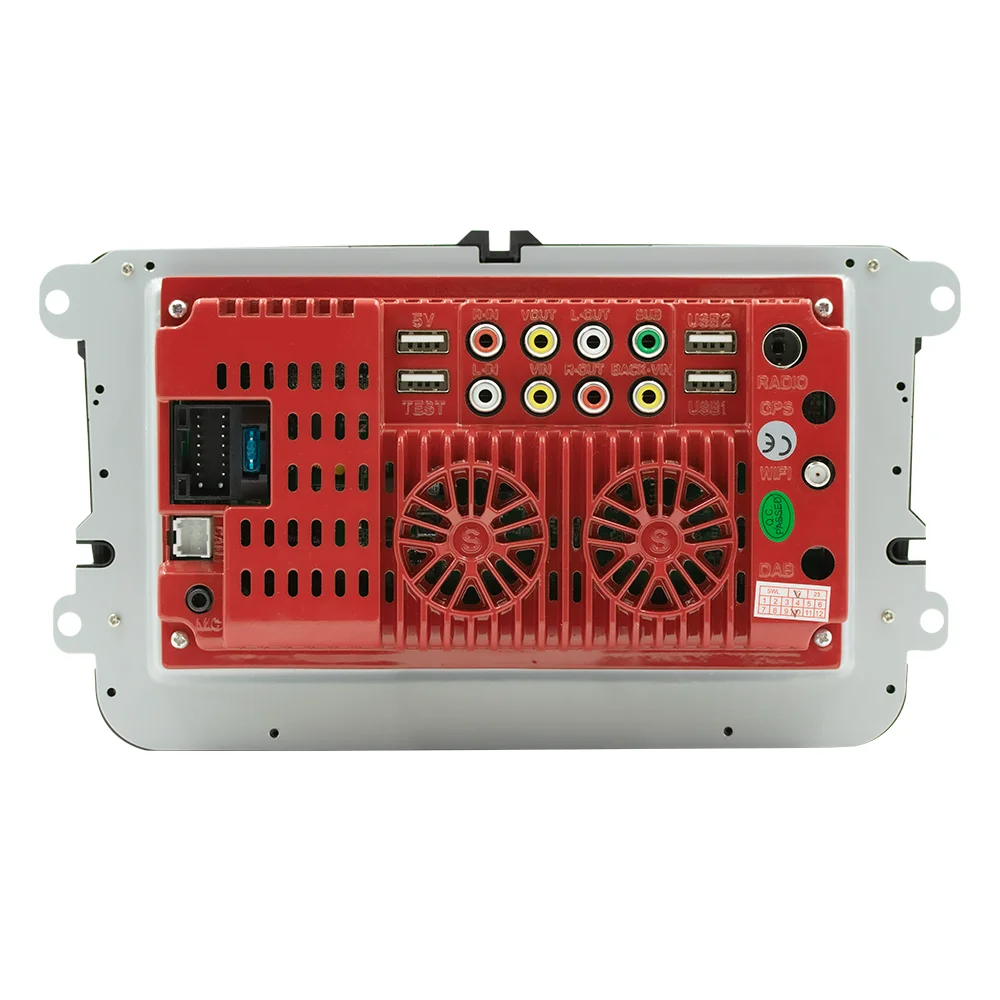

RCA port parameters
Audio output : 2 channels (left channel + right channel)
Subwoofer output : 1 channel
Video output : 1 channel
Audio input : 2 channels (left channel + right channel)
Video input : 2 channels
Reversing video input : 1 channel
Format parameters
Audio format : MP3/AAC/APE/OGG/M4A/RA/WAV

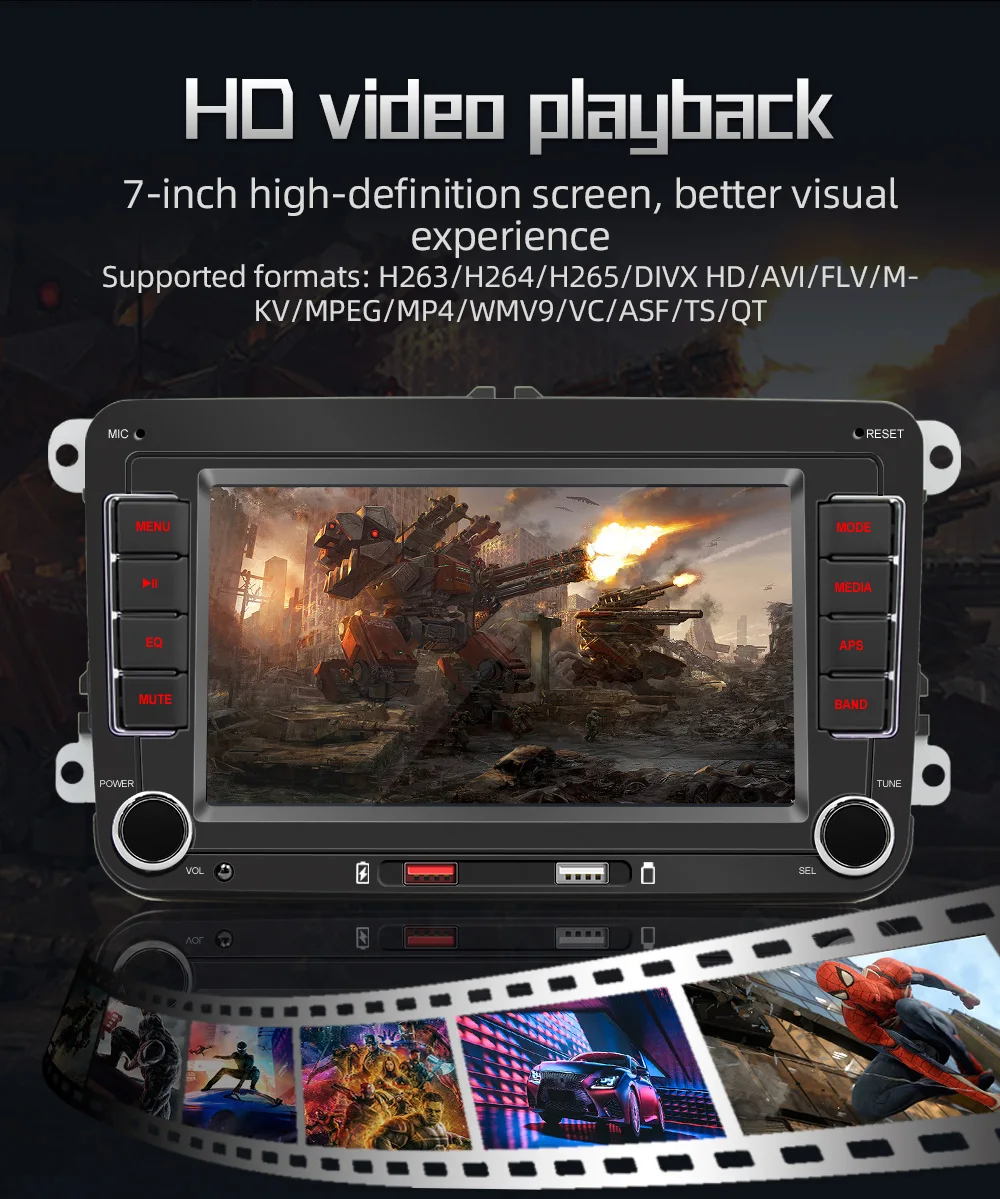

Video format : H263/H264/H265/DIVX HD/AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT
Image format : JPEG/PNG/BMP/GIF/TIFF
Language parameters
English, Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew, Italian, Czech, Japanese
Other parameters
Factory setting password 000000

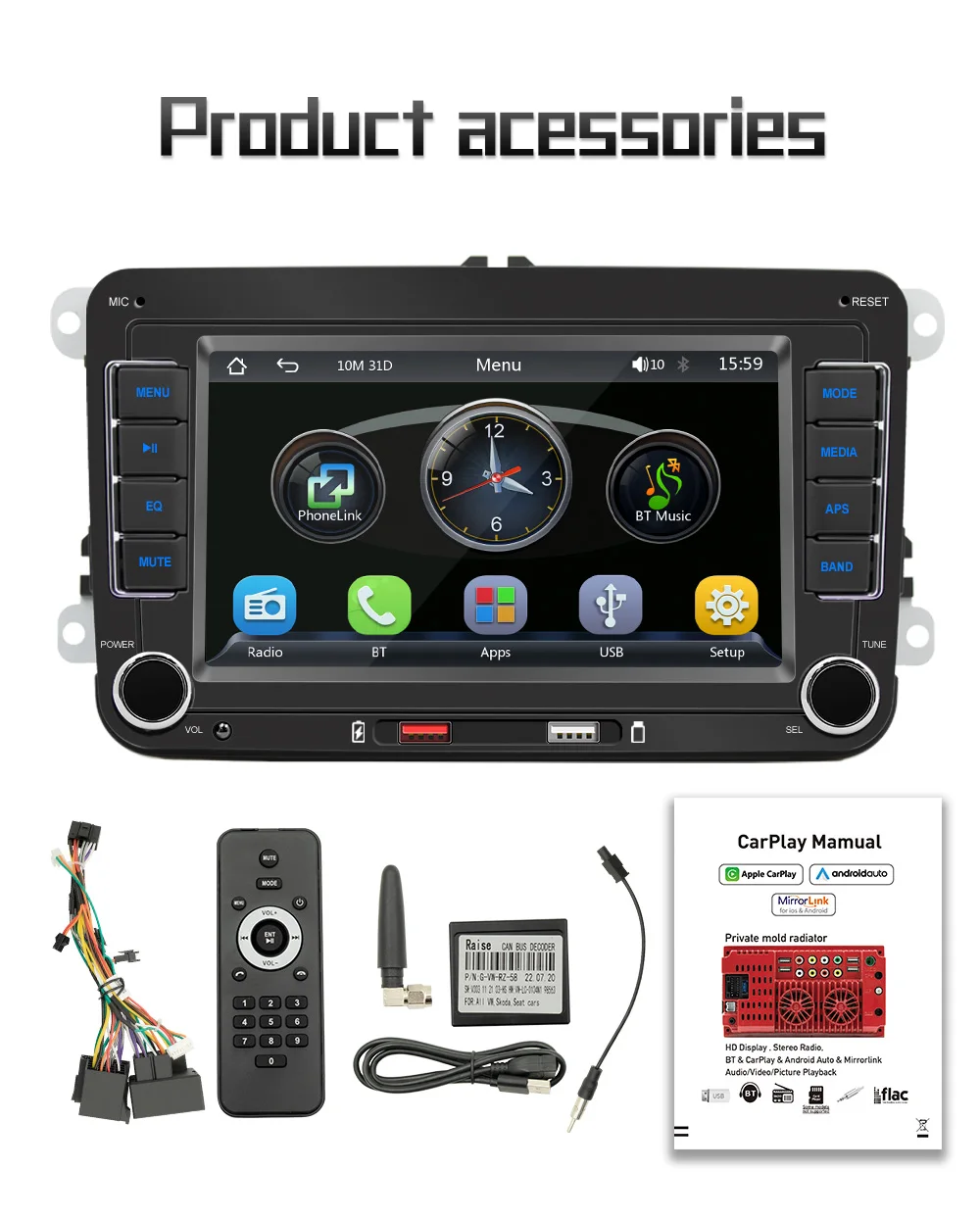

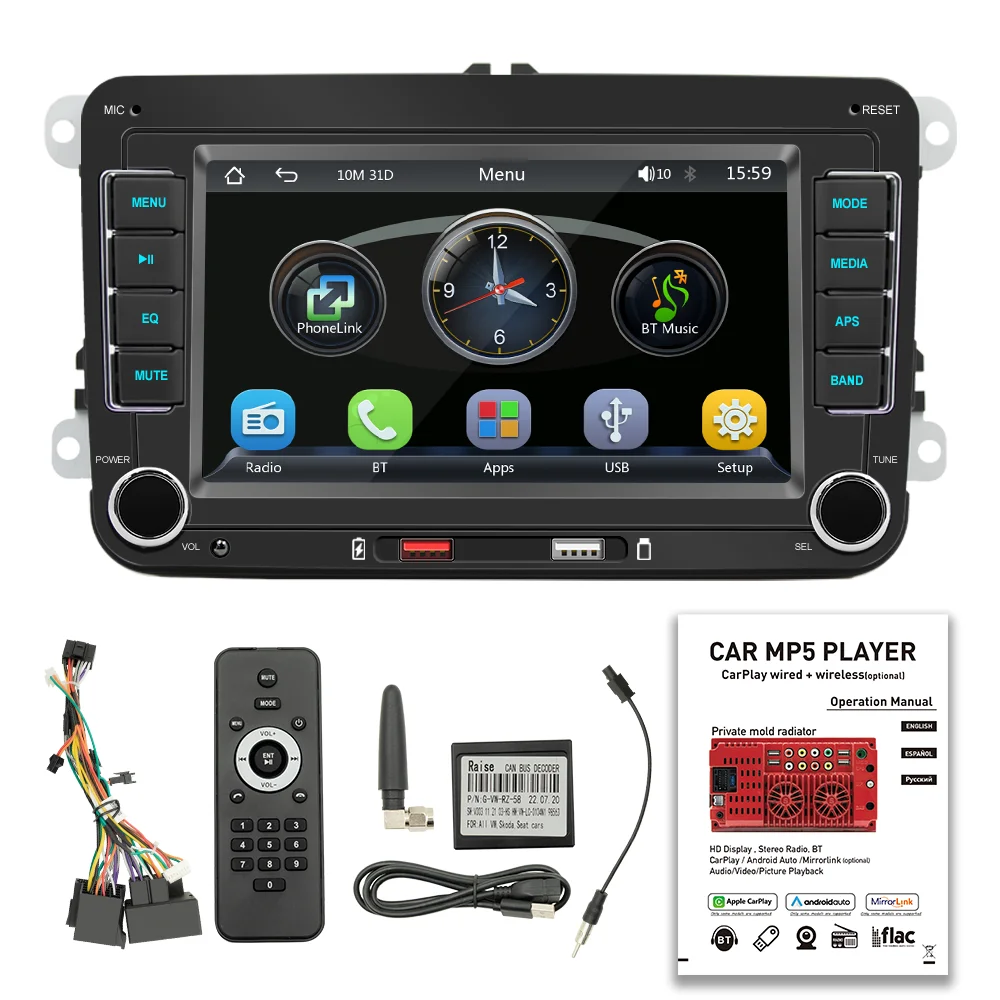

Accessories
1×1 Car Player
1×1 High and low power cord + can bus
1×1 Manual
1×1 USB charging extension cable
1×1 Wifi antenna
1×1 Radio antenna adapter
1×1 21-button silicone remote control
(accessories, manuals, and packaging will be updated from time to time, subject to the actual receipt of the goods)
FAQ:
Q1.Why the car radio can’t turn on?
1>Please check the Voltage of the car radio: DC 12V
2>When you test this car radio, you can combine the red and yellow wires and connect them to the positive side of the power supply. The black line to the negative power supply.
3>Replace the same type of insurance to test the car radio.
Note: Please must use our power cables to connect our car radio, it is not possible to insert the original car plug directly into our machine.
Q2.Why the car radio will show time after we turn off this?
>That time clock is a function for the car radio, that can’t be removed. In fact, a car radio had been turning off, saves time is more convenient for people to see,
>If you didn’t need this, you need to unplug the power positively and negatively
Q3.Why hasn’t sound in the car radio when playing music?
>1. When you are not using our original audio cable, please check if your audio cable is suitable for our camera.
>2. Please check if there is any collision between the lines.
>If the line is connected, there will be no sound when the speaker cable touches the speaker cable. There is also no sound when the power cord touches the speaker cable.
>If the problem is still here, please use a single speaker to connect a group of audio cables to test the car radio. The four-speaker cables are connected separately to see if there is any sound.
Q4.Why can’t search FM?
>1. No radio antenna was inserted.
>2. Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted.
>3. The signal of your location is not good. Please go to a better place to test again.
>4. The radio antenna on the car is broken/has no effect; please replace the radio antenna and test it again.
Q5.Why can’t connect the Bluetooth to the car radio?
>1. Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, and find the player’s Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.
>2. Please try to use another mobile phone to test this function. All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.
Q6. How to update GPS Map?
>1. First of all, you need to download the map update APK from our website or anywhere else, or use a mobile phone to do WIFI hotspots to download and install directly. You can also use online navigation. Then you need to copy them to the GPS ROM and set the navigation path to the navigation program by setting.
Q7.Is it possible to listen to music or radio while using navigation ?
>1. Yes, it is possible to listen to the radio or music while using the navigation system. Clayton devices are using a unique technology that makes listening to music happen when you are using the navigation system.
Q8.Do these units support steering wheel control ?
>1.Yes of course. For each different car model, there is a different CAN-Bus ( Optional ) that comes with the unit to match the unit to the vehicle amplifier and steering wheel control.
Q9.Can we install the DVD Units ourselves?
>1. We will provide all the wires for the navigation, Power wire (Plug and play), RCA wires (with 7 ports), Reversing video input wire & wifi & Bluetooth antenna, GPS antenna, two USB wires
>2. It is preferred that the installation be done by a professional person. We are not responsible for the damages that might occur to the dashboard of the car while installing the device. So it is better that a professional person installs the unit on the cars.
