THINKSCAN 689BT Wireless Professional Car Diagnostci Tool Lifetime Free Use and Update, no Annual fee,4+64GB

1.All systems diagnostic + 34 resets functions

2.ECU Coding + Active Test (Bidirectional control)

3.Support CANFD and DOIP protocol

4.Autoauth for FCA SGW Access (not include the FCA gateway)

5.Support more than 100 car brands,Worldwide Compatibility, NO IP restrictions

6.Android 10 with 4-core CPU, 4GB RAM 64GB ROM

Supported 28 language:

English, German, Spanish, French, Italian, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Greek, Slovak, Romanian, Arabic, Croatian, Slovene, Finnish, Japanese, Korean, Czech, Persian, Swedish, Serbian, Danish, Vietnamese , Bulgarian

OE-Level Full Diagnostics + Stable Wireless BT Connectivity

Provides accurate and in-depth results across all automotive systems with dealership-level full system diagnostic tasks. Retrieve codes, read ECU information, view live data, and perform active tests to check module work status.all available systems: ECM, TCM, ABS, SRS, BCM, BMS, TPMS, and A/C system, etc. Through reading/erasing codes, viewing live data, retrieving ECU info, and performing active tests & service functions, THINKSCAN 689BT evaluates the car’s health status for 20K+ models.

ECU Coding + Adaptation + Initialization + Matching

The THINKSCAN 689BT bidirectional obd2 scanner support ECU Coding to quickly match, learn, code any replaced ECU. Modify ECU and reveal hidden features for 99% cars in the market. Adaptive data for certain components after repairs or replacements.

Bi-Directional Control/Active Tests

The THINKSCAN 689BT bidirectional scan tool can output commands to a vehicle’s ECUs, read the ECU data, and monitor the operation of the actuators. Through active tests on certain components, such as fuel pumps, a/c fan, inside mirrors, headlamps, windows, and horns, this bidirectional scanner will let you quickly know whether a specific system, component, or subsystem is functioning properly or not, helping you locate the car issues precisely.

34 Reset Functions Lifetime Free use and update

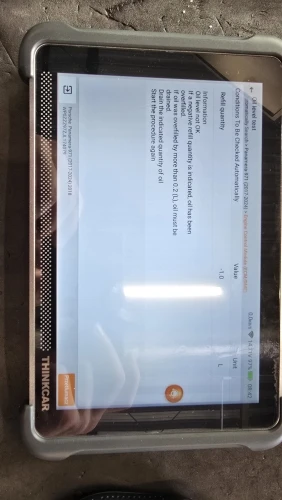

1. Oil Reset
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system’s safety and efficiency.

3.BAT battery service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Matching
In order to prevent the car from being used by illegal keys, the IMMO matching function enables the anti-theft control system on the car to identify and authorize the remote key, so that the car can be opened and used normally. When the car changes the ignition switch key,ignition switch, integrated dashboard, engine control unit (ECU), body control module (BCM) and remote control battery, the IMMO matching is required.

8.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset
‘AFS’ means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don’t turn when you turn the steering wheel.

13.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change
This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.ODO Meter Check
Only supports reading the current mileage of the car, does not support modifying the mileage

25.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key,etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

29.Gateway Module Data Calibration:After replacing the gateway control unit , there may be a VIN inconsistency , so the VIN needs to be changed

30.ECU Reset:After performing the ECU coding, some ECUs may not display the new code and will need to run this function to display the correct code

31.Clutch Matching:This function is used to learn the engagement point of the clutch at which the engine torque is transmitted to the gearbox . To be camied out after replacing the control unit , replacing / removing the gearbox or replacing the clutch

32.Rainfall Light Sensor:The rain sensor is used to adjust the wiping frequency and the light sensor adjusts the light intensity of the automatic headlights depending on the ambient light and darkness. After replacing the windscreen or the sensor. the rain/driving light sensor must be initialised.With this service function, initialisation performs an adjustment of the rain / driving light sensor.

33. FRM Matching:This function resets the FRM control unit ( installed in BMW and MINI vehicles ) . The reset clears fixed faults in the footwell module related to a short circult of the lights

34. Turbocharging Matching:For learning after replacement of turbocharger system components or resetting the turbocharger leaming value

NOT ALL Reset Services work for All Car Models. Please contact seller with the vehicle Make/Model/Year/Vin before purchase to make sure the desired functions are compatible with your cars, which won’t waste your time!!!

GM: CANFD Car Models

DoIP:

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes it save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).

Autoauth for FCA SGW Access

It does not include the FCA gateway. When the device diagnosis encounters the FCA gateway prompt, it means that the car is equipped with a gateway.
Our equipment can support reading version information, reading fault codes, and reading data streams without purchasing a gateway account;
After purchasing a gateway account, our equipment can support reading version information, reading fault codes, reading data streams, action testing, clearing fault codes, special functions, and maintenance functions.

Available for purchase on the thinkcar official website.For detailed operating instructions, please contact us to give you the instruction manual

The following models are equipped with FCA gateways, and you need to purchase an FCA account or a 12+8 adapter

Starting from 2018
Chrysler: 300, Grand Voyager
Dodge: Challenger, Charger, Durango, Journey, Ram 1500, Ram 2500, Ram 3500, Ram 4500, Ram 5500
JEEP: Grand Cherokee, Renegade, New Wrangler (JL), Grand Commander
Alfa Romeo: GIULIA 500X, 500, Novo Uno fl, Toro Fiat: 500L,
Maserati series

Starting from 2019 JEEP: Cherokee, Compass
Starting from 2020 JEEP: Gladiator
Continue to update more……

Full OBD2 Fuctions

Read Codes:Read extensive current, pending and permanent codes in OBD system quickly

Clean Codes:Clear detected fault codes and turn off the Check Engine Light efficiently

Live Date:View graphical live data of vehicle’s computer module(s) for easy analyses

Freeze Frame:View the vehicle’s operating parameters at the moment a DTC is detected

I/M readiness:Read I/M readiness status to have a vehicle inspected for state emissions compliance

O2 sensor test:Perform O2 sensor test to check fuel efficiency and vehicle emissions

On-Borad Monitor Test:Read the results of on-board diagnostic monitoring tests for specific components/systems

Car Information Display:Retrieve the vehicle information of VIN, CINs, and CVNs completely

EVAP Test:Perform the component Test by allowing initiating a leak test for the vehicle’s EVAP system

Cover 109+ car brands

-American Cars
For Buick; For Cadillac; For Chevrolet; For Chrysler; For Dodge;For Ford; For GM; For Hummer; For Jeep; For Lincoln; (BRAZIL) For BX-Fiat; For BX-GM

-European Cars:
For Abarth; For Alfa Romeo; For Audi; For Bentley; For Benz; For BMW; For Bugatti; For Citroen; For Dacia; For EU-Ford; For Ferrari; For Fiat; For Jaguar; For Lamborghini; For Lancia; For LandRover; For Maserati; For Maybach; For Mini; For Opel; For Peugeot; For Porsche; For Renault; For Rolls-Royce; For Rover; For Saab; For Seat; For Skoda; For Smart; For Sprinter; For Vauxhall; For Volvo; For VW; For (UKRAINE) ZAZ; For (RUSSIA) GAZ; For VAZ

-Asian Cars
For (JAPAN) Acura;For Daihatsu; For Honda; For Infiniti;For Isuzu; For Jpisuzu; For Lexus; For Mazda; For Mitsubishi; For Nissan; For Nissan GTR; For Scion; For Subaru; For Subaru; For Suzuki; For Tlisuzu; For Toyota; For (KOREA) Daewoo; For Hyundai; For KIA; For Samsung; For Ssangyong; For (CHINA) Baic; For Beijing; For Changan; For Changan-Ford; For Changcheng; For Changhe; For Chsuzuki; For DF Peugeot; For DF Honda; For DF Nissan; For DF XK; For Flyer,For BYD; For Fukang; For Futian,For Foton; For Geely; For Gonow; For GZ Honda; For Hafei; For Haoqing; For HC BMW; For Hmada; For Huachen; For Isuzu,For JMC; For Jacty; For Jianghuai; For Jiao; For Jinlong;For Joylong;For Lifan; For Liuwel-TY; For Luxgen; For NJ Fiat; For Qirul-TY,For chery; For Qoros; For Saicmg; For Spark-TY; For TJ Toyota; For Trumpchi For GAC; For Weili; For Xiaokang For Dongfeng; For Xili,For Faw Tianjin; For Xinkai; For YQ Mazda; For Zhongshun; For Zhongtai,For Zotye; For Zhongxing; For (INDIA) Mahindra;For Maruti; For Tata; For (MALAYSIA) Perodua; For Proton; For (IRAN) MVM

-Australian Cars
For Au-Ford; For Holden

✔ CONTINUOUSLY GROWING Vehicle Coverage WITH UPDATES

More functions

✔ Diagnostic Report Generate and Share — , you can generate a full system Diagnostic Report with ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card.

✔ View History — Once a vehicle diagnosis is performed, THINKSCAN 689BT, will record every detail of the diagnostic process. You can record/review/playback live data anytime. The History function provides quick access to the tested vehicles and users can resume from the last operation, without the necessity of starting from scratch.

✔ Remote Diagnosis — Configures THINKSCAN 689BT, as a Team Viewer tool, which enables technicians to exchange repair experience and perform remote assistance more conveniently.

✔Online Service Support — With 24/7 professional support for you anytime and anywhere. Get in touch with our highly trained technicians whenever you need them by the in-app chat.

Technical Specifications

Operating system: Android 10.0
Processor: 2.0GHz 4-core
Memory: 4GB
Storage: 64GB
Display screen: 8-inch, LCD screen
Resolution:1280 * 800
Wi Fi: 2.4GHz/5GHz dual band
Battery: 4150mAh

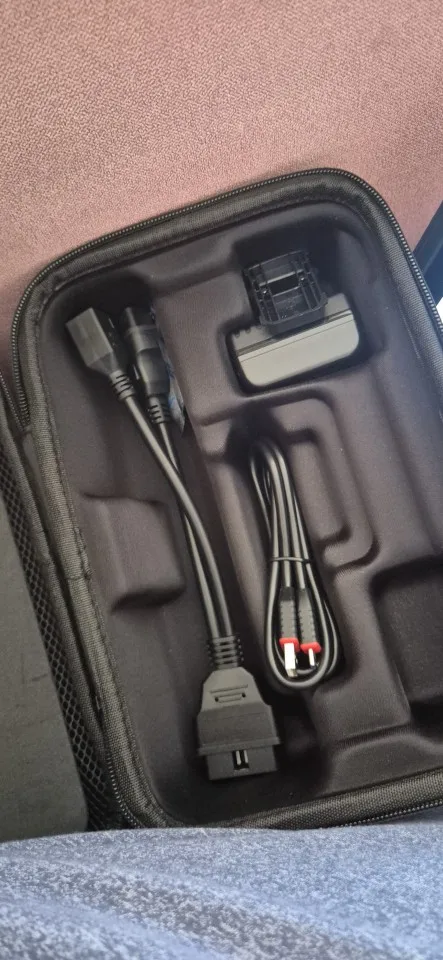

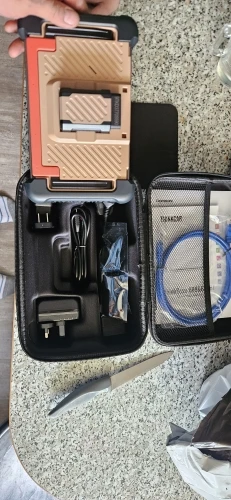

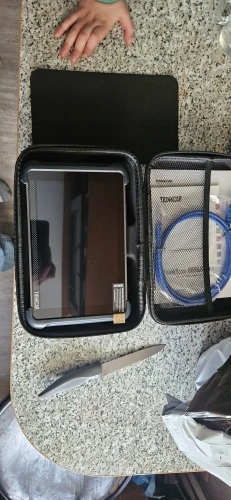

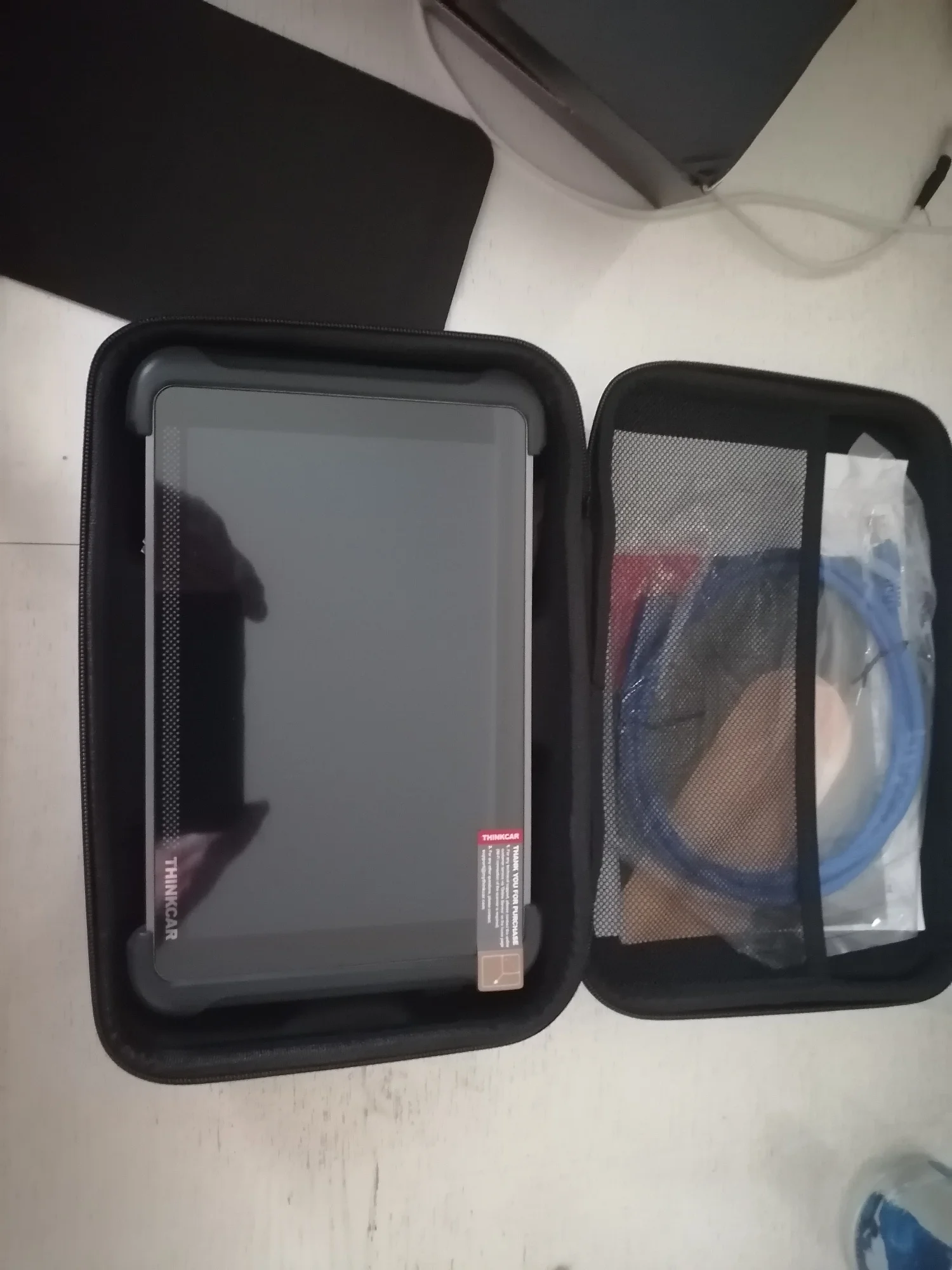

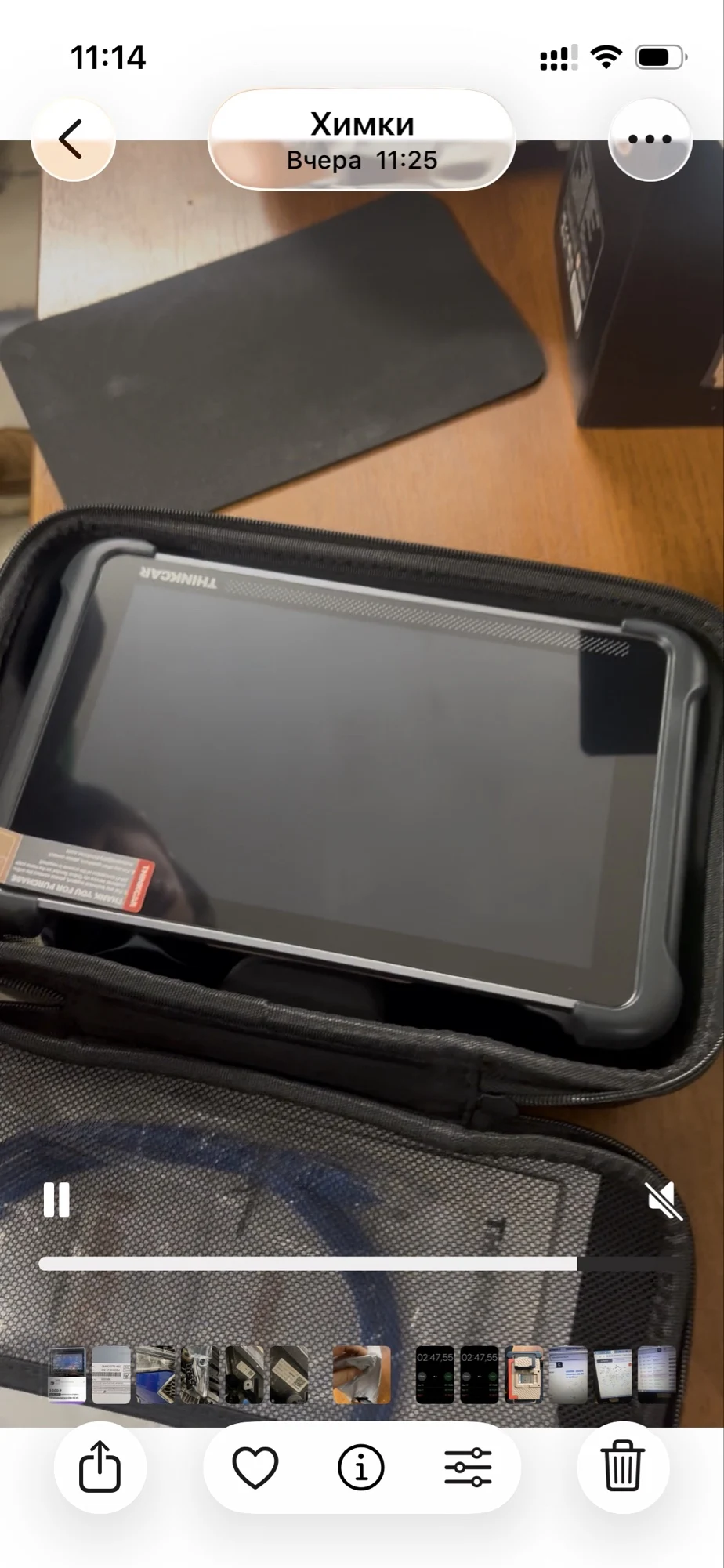

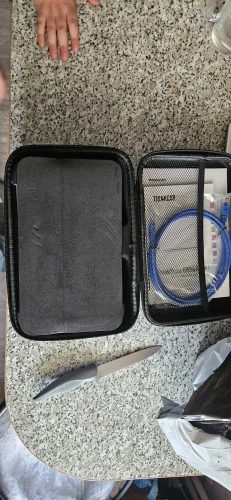

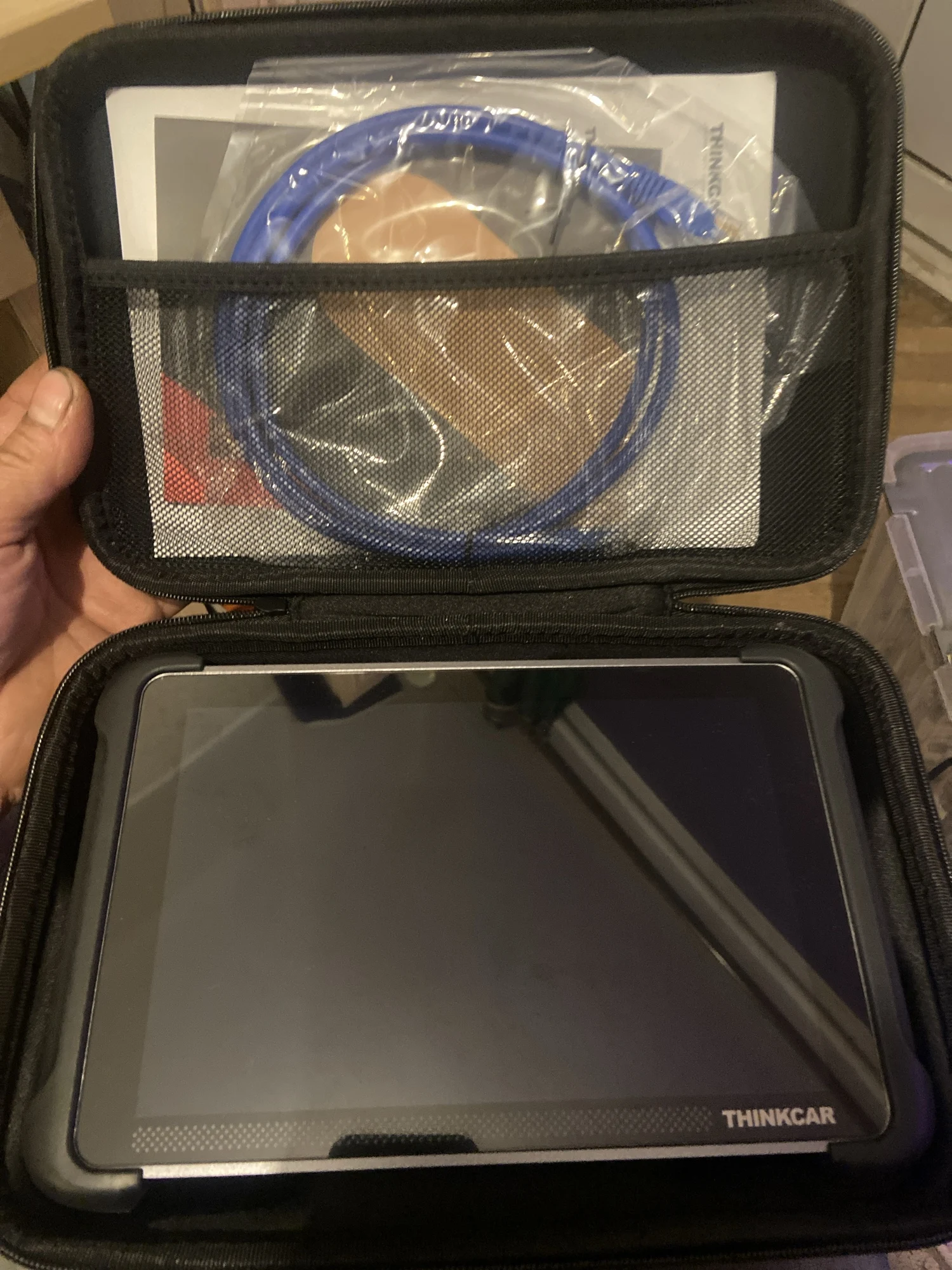

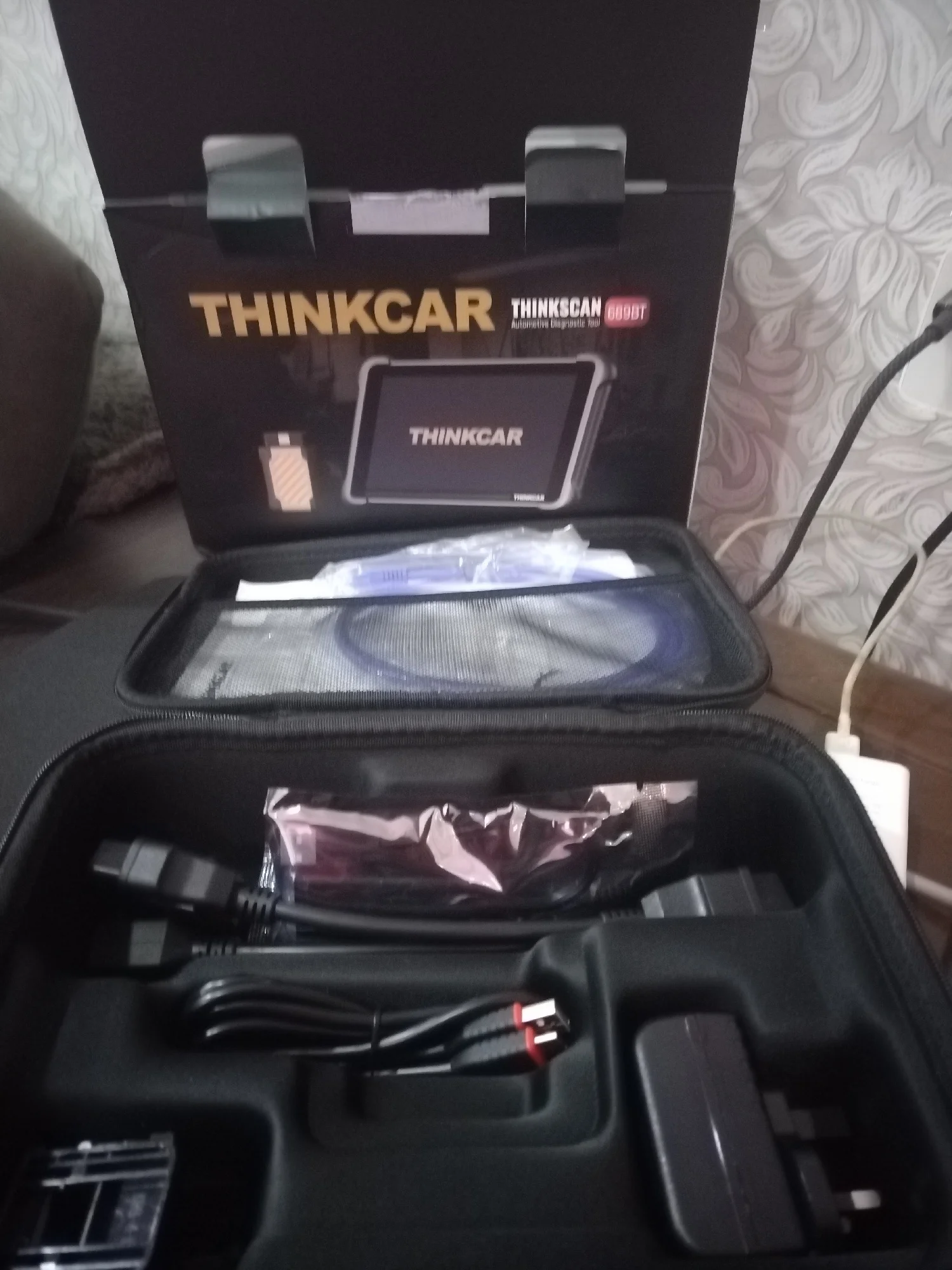

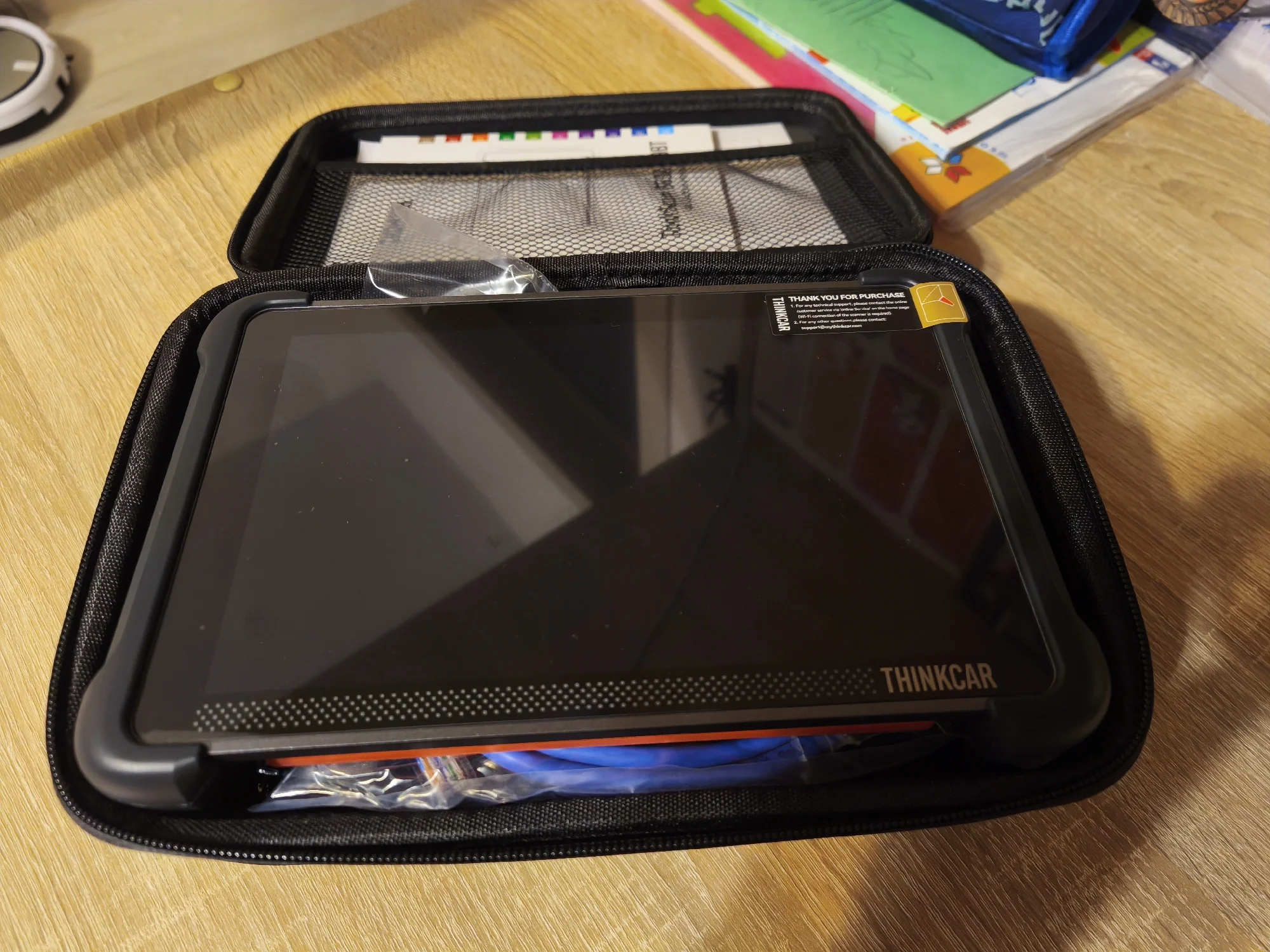

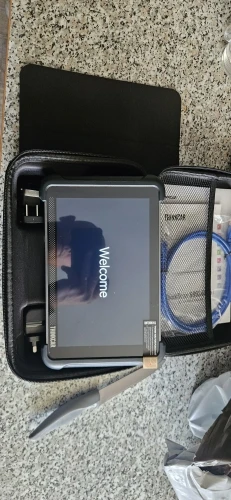

Package List

1*THINKSCAN 689BT
1*DB15 diagnostic cable
1*3 in 1 charger
1*User manual

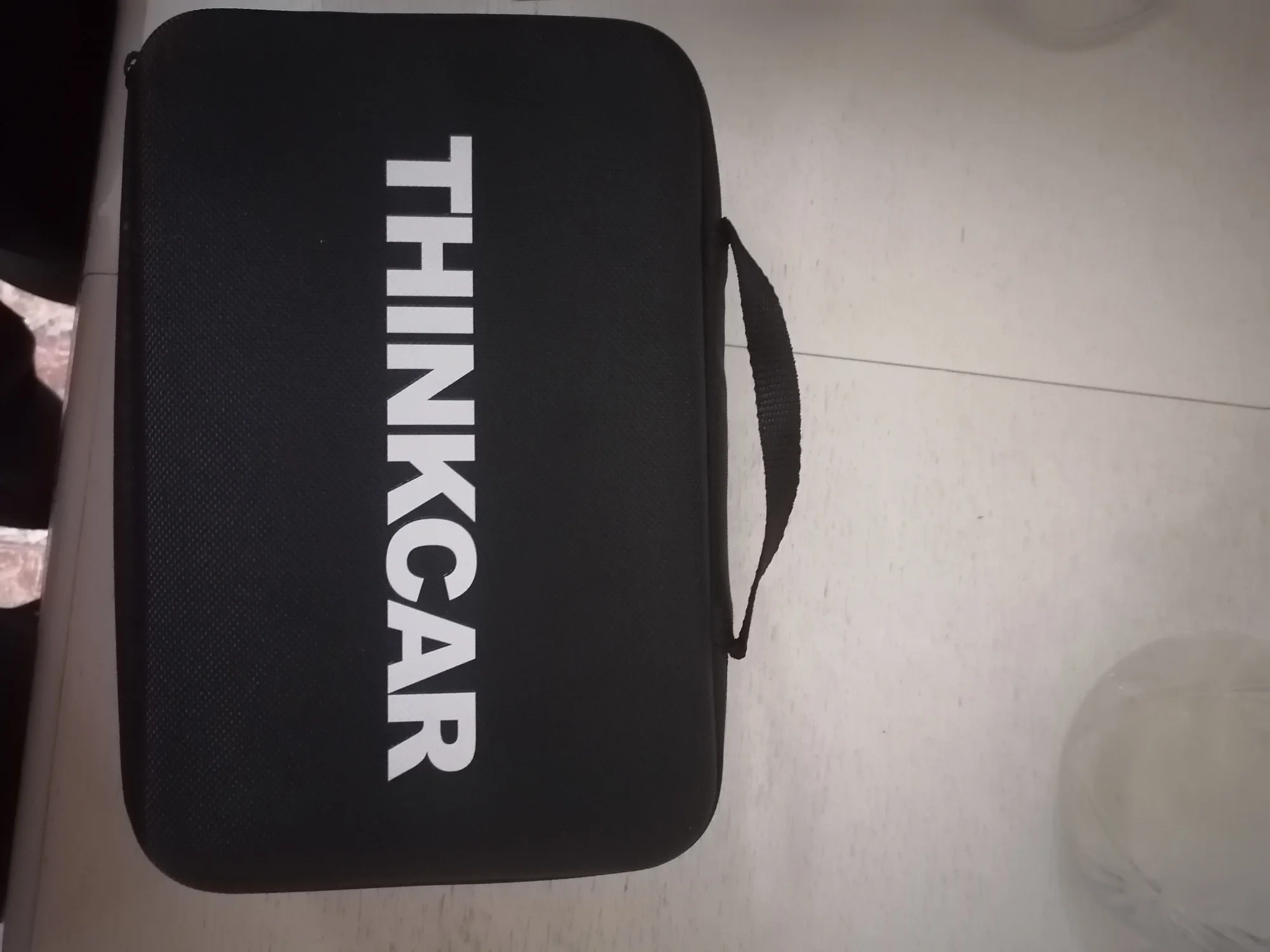

1* Storage bag
